WiiM

Wiil Vibelink Amp

Wiil Vibelink Amp

Regular price $599.00 AUD
Regular price $599.00 AUD Sale price $599.00 AUD
Sale Sold out

Power & Amplification

• Output Power : 100W per channel at 8Ω (stereo)
• Amplifier Technology : Class-D with PFFB (Post-Filter Feedback) technology
• Total Harmonic Distortion (THD+N) : ≤0.0005%
• Signal-to-Noise Ratio (SNR) : ≥120dB
• Frequency Response: 20Hz – 20kHz ± 0.5dB
• Impedence Range: 3~8 ohms

Audio Processing

• Premium DAC : ESS 9039Q2M high-performance DAC
• Bit-Perfect Playback : Supports up to 192kHz/24-bit audio
• Dynamic Range : ≥120dB for high-resolution sound
• Pure Analog Input : No ADC conversion, maintaining signal integrity

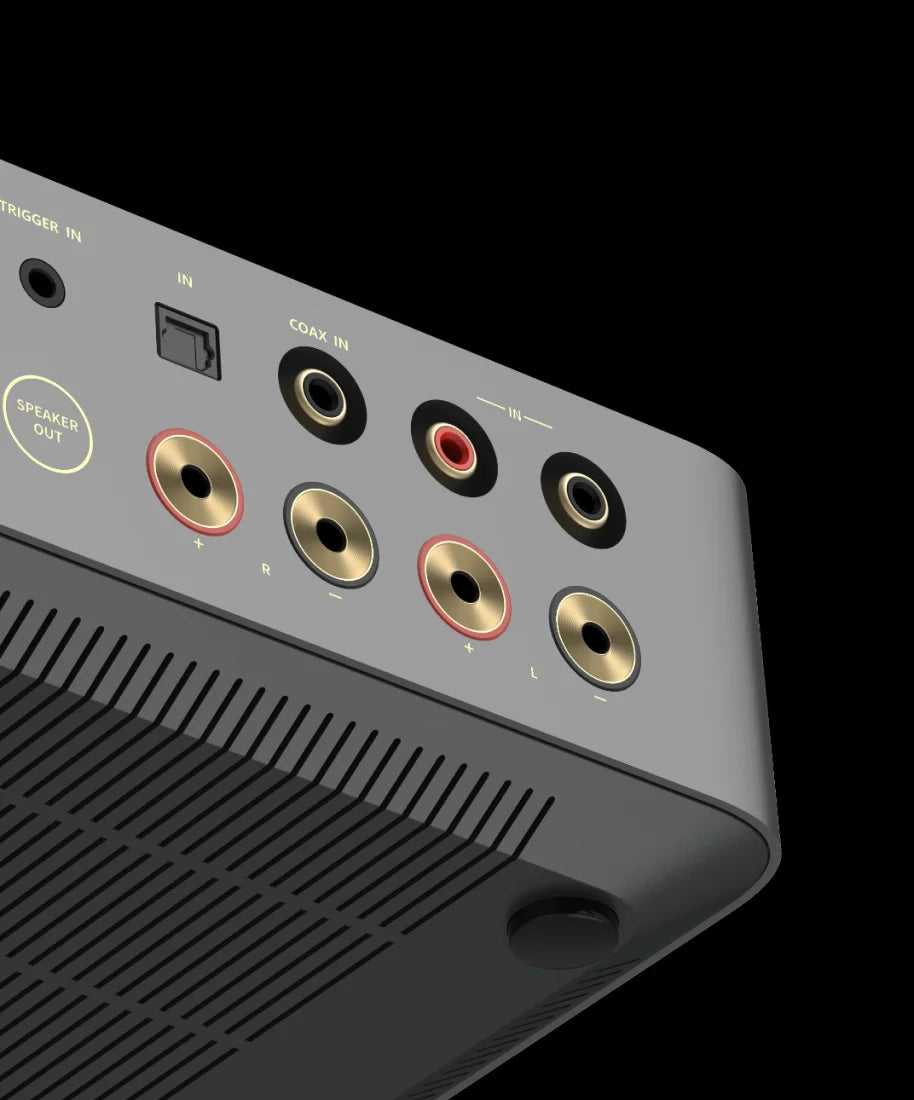

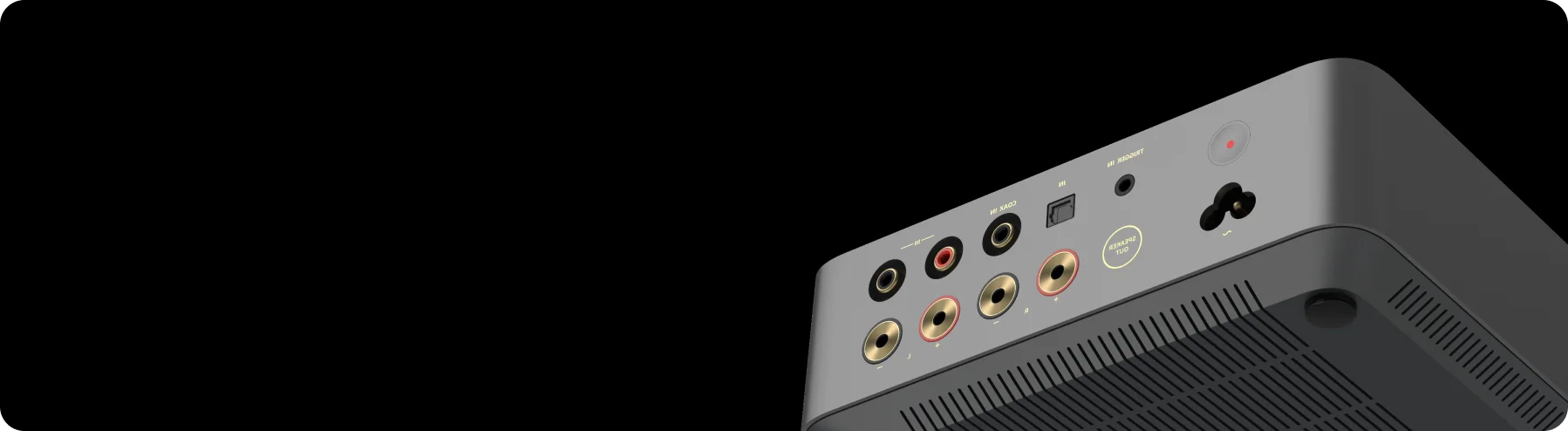

Input & Output Options

Analog Inputs:
• 1x RCA Stereo (Line-In, pure analog signal path)
✅ Digital Inputs:
• 1x Optical (TOSLINK) – Up to 192kHz/24-bit
• 1x Coaxial (S/PDIF) – Up to 192kHz/24-bit
✅ Speaker Outputs:
• Gold-plated binding posts (supports banana plugs or bare wire connections)
✅ Trigger & Power Management:
• 12V Trigger In: Auto power-on with compatible devices
• Auto Standby Mode: Powers down after 30 or 60 minutes of inactivity

Supported Audio Formats

PCM up to 192kHz/24-bit (through digital sources)

Dimensions: 7.9 x 8.4 x 2.6 inches (200 x 212.5 x 66 mm)

Weight: 2.05 kg (4.5 lbs)

Power input: 100-240V, 50/60Hz AC, 3A Ma
