Marantz

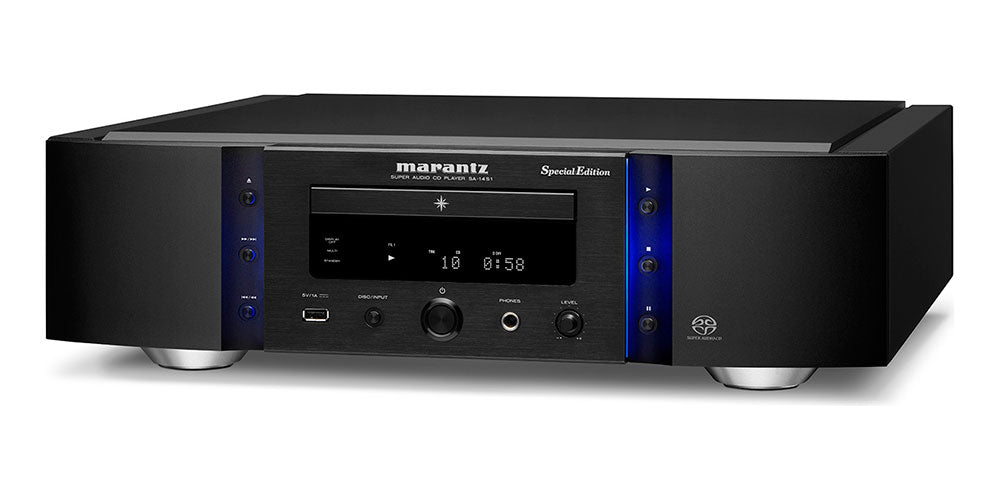

Marantz SA14S1 SE
Marantz SA14S1 SE
Regular price
$4,999.00 AUD
Regular price
$4,999.00 AUD
Sale price
$4,999.00 AUD
Unit price
/
per
Couldn't load pickup availability
Specifications:
| CD Compatibility | CD / CD-R/RW / SA-CD / WMA / MP3 / AAC |
|---|---|
| CD-Text / SA-CD Text / ID3 Tag / WMA Meta Tag / AAC Meta data | Yes |
| IPod / iPhone compatible USB input | Yes |
| HDAM version | HDAM+HDAM SA2 |
| Asynchronous mode rear USB | Yes |
| Bit-perfect transmission | Yes |
| USB-B DSD Audio Streaming (DoP) | DSD2.8 / DSD5.6 |
| Ground isolator for DAC Mode operation | Yes |
| Power Transformer | Toroidal |
| High Grade Audio Components | Yes |
| DAC operation mode | USB / Coax / Optical |
Playback
| Program Play (CD) | 20 |
|---|---|
| Repeat | Yes |
| Random Play | Yes |
| Start Sound Mode for SA-CD | Yes |

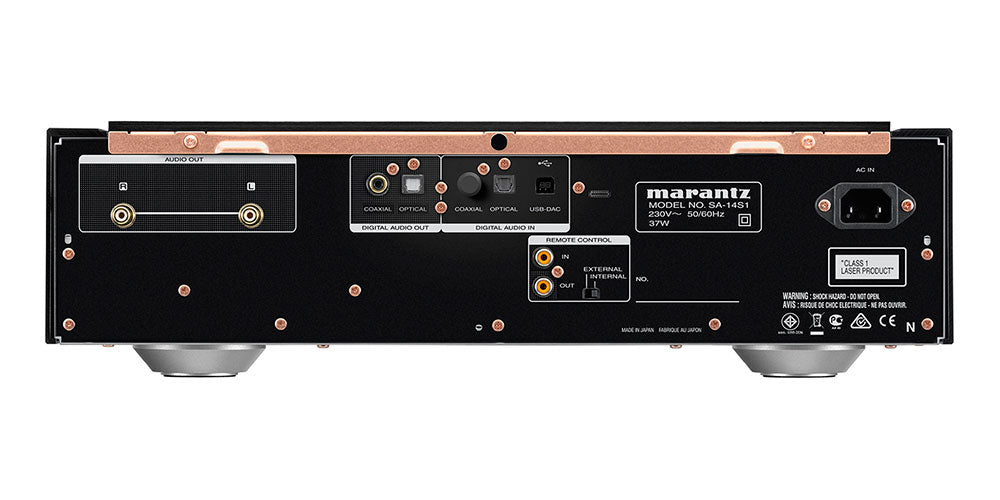

Inputs / Outputs
| Analogue Out (Cinch) | 2ch |
|---|---|
| Digital Optical In / Out | Yes |
| Digital Coaxial In / Out | Yes |
| Sample Rate digital In | 192 kHz/24-bit |
| Gold Plated Cinch | Yes |
| USB Audio (Front ) / Made for iPod / Works with iPhone | Yes |
| USB type B input for PC (back) | Yes |
| D-Bus | Yes |
| Headphone Out | Yes |
| Headphone Volume Control | Yes |
| Sample Rate USB type B In | 192 kHz/24-bit & DoP (DSD2.8 and DSD5.6) |
Specifications
| Mechanism | FG Mecha (MZ original) |
|---|---|
| D/A Conversion | Multi-bit, Delta-Sigma |
| DAC IC | DSD1792A |
| Digital Filter | DSD1792A |
| Noise Shaper | DSD1792A |
| Low Pass Filter stage | HDAM |
| Output Buffer | HDAM SA2 |
| Headphone Amp | HDAM + HDAM SA2 |
| Frequency Response (Cust.) | 2 Hz - 50 kHz |
| Dynamic Range (SA) | 112 dB |
| Signal to Noise Ratio (SA) | 110 dB |
| Total Harmonic Distortion (SA) | 0.001% |
| Channel Separation (SA) | 102 dB |
| Frequency Response | 2 Hz - 20 kHz |
| Dynamic Range | 100 dB |
| Signal to Noise Ratio | 110 dB |
| Total Harmonic Distortion | 0.0015% |
| Channel Separation | 100 dB |
| Available colours | Gold / Black |
|---|---|
| Metal Front Panel | Yes |

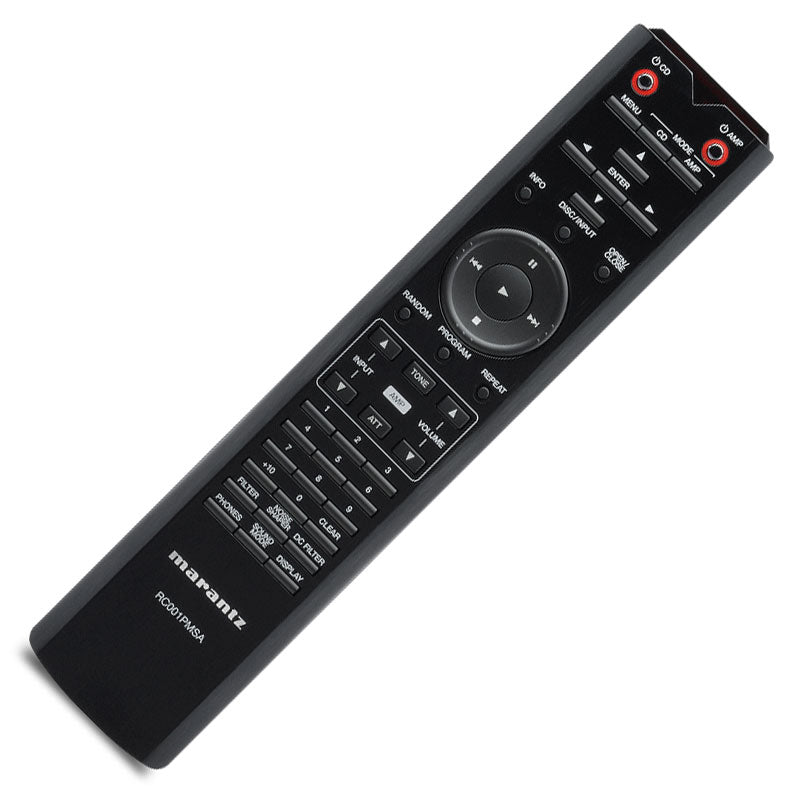

| Remote Control | RC001PMSA |
| Power Consumption | 37W |
| Standby Consumption | 0.3W |
| Auto power off | Yes |
| Detachable Power Cable | Yes |
| Maximum Dimensions (W x H x D) | 440mm x 127mm x 419mm |
| Weight | 15.3kg |
