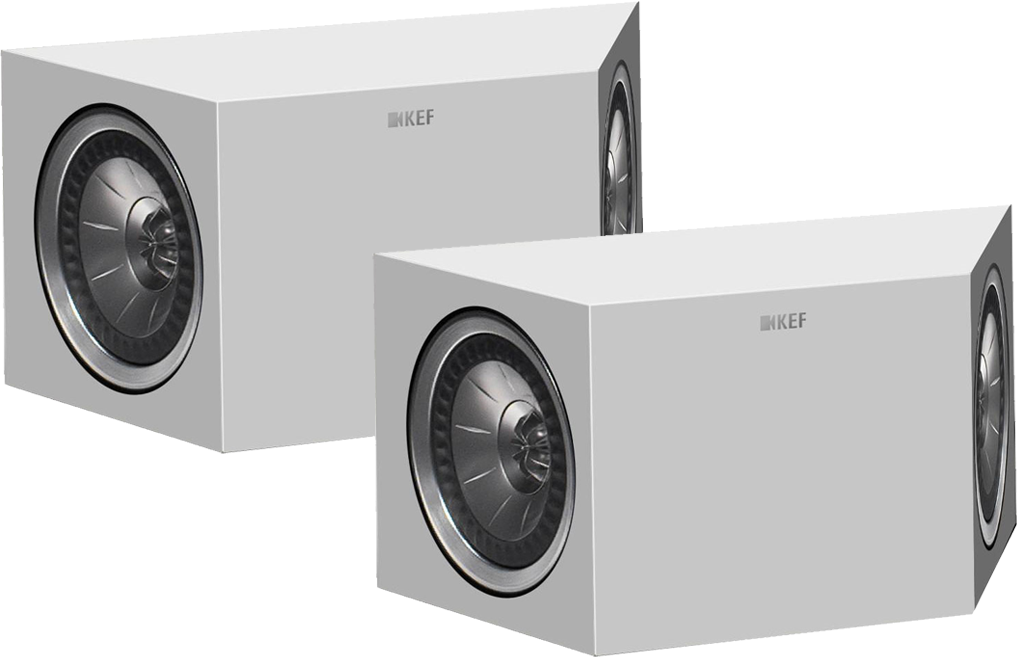

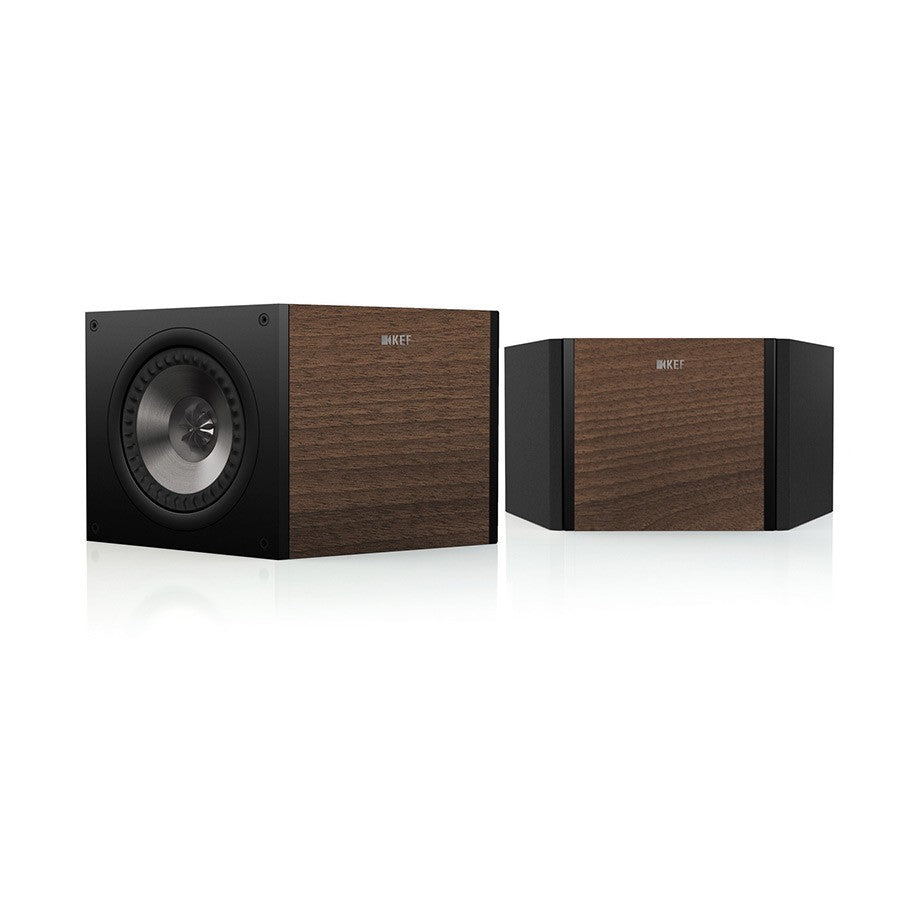

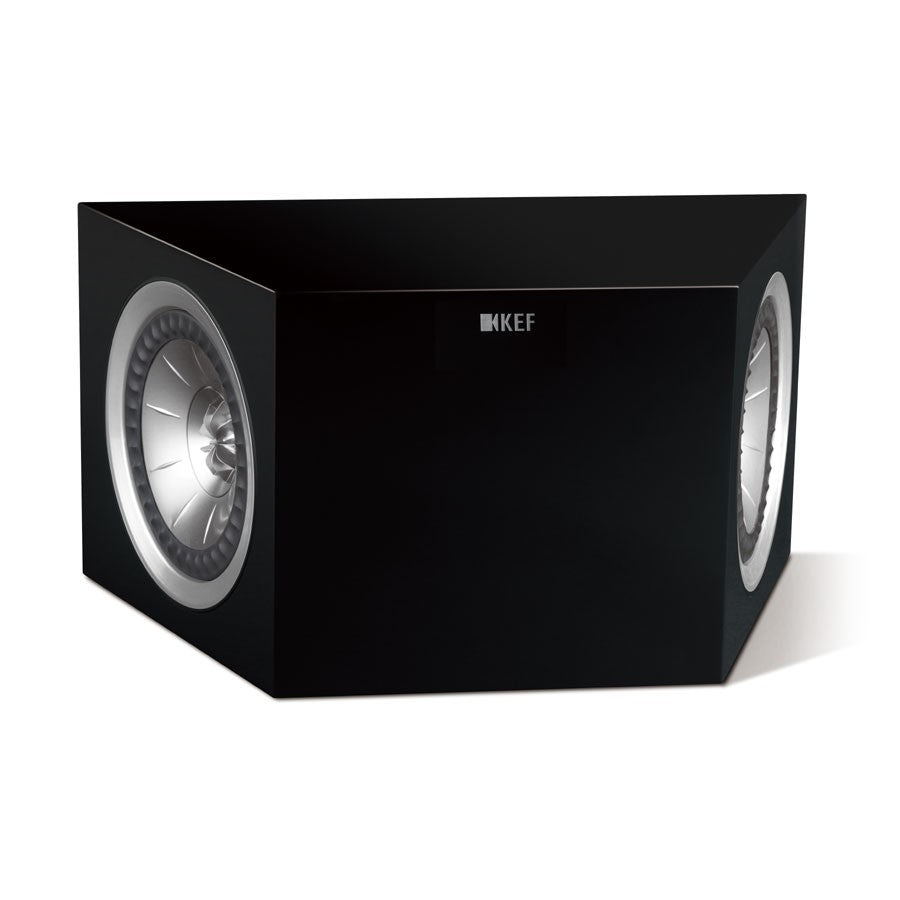

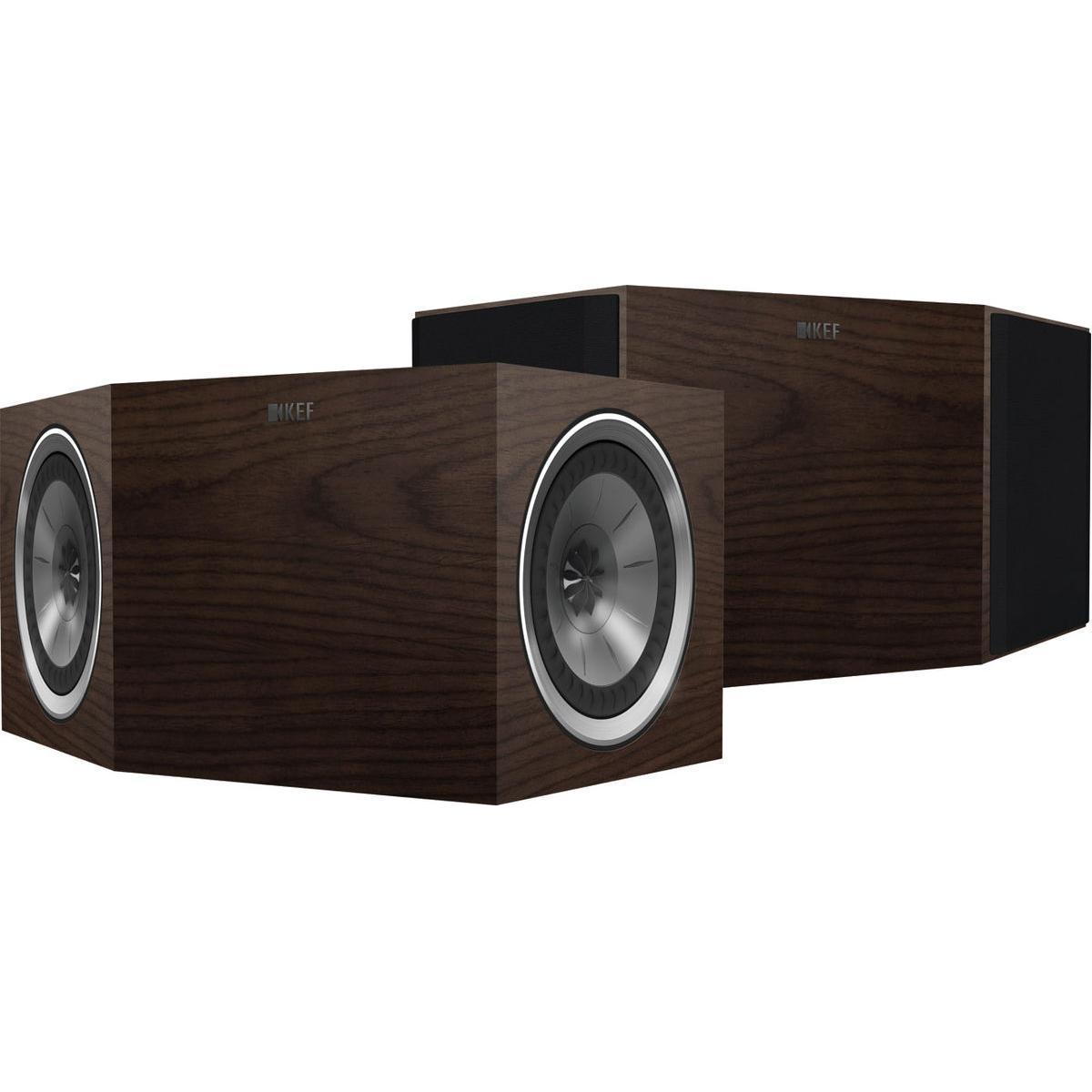

R800ds Dipole Speaker
R800ds Dipole Speaker
Regular price
$2,880.00 AUD
Regular price
$3,395.00 AUD
Sale price
$2,880.00 AUD
Unit price
/
per
DESIGN | Three-way dipole |
---|---|
DRIVE UNITS | Uni-Q driver array: HF: 2 x 25mm (1in.) vented aluminium dome LF/MF: 2 x 130mm (5.25in.) aluminium |
FREQUENCY RANGE | 90Hz - 45kHz (-6dB) |
FREQUENCY RESPONSE | 100Hz - 28kHz (±3dB) |
CROSSOVER FREQUENCIES | 300Hz, 2.5kHz |
MAXIMUM OUTPUT | 107dB |
AMPLIFIER REQUIREMENTS | 25 - 100w |
SENSITIVITY | 85db (2.83v/1m) |
HARMONIC DISTORTION | < 0.4% 150Hz - 20kHz |
NOMINAL IMPEDANCE | 8 Ohms (min.3.2 Ohms) |
DIMENSIONS | 180 x 350 x 184 mm (7.1 x 13.8 x 7.2 in. ) with grille and terminal |
WEIGHT | 7.4kg (16.3lbs) |
UNIT MEASUREMENT | Pair |
DOCUMENT DOWNLOAD |
R Series Brochure R Series Manual |
