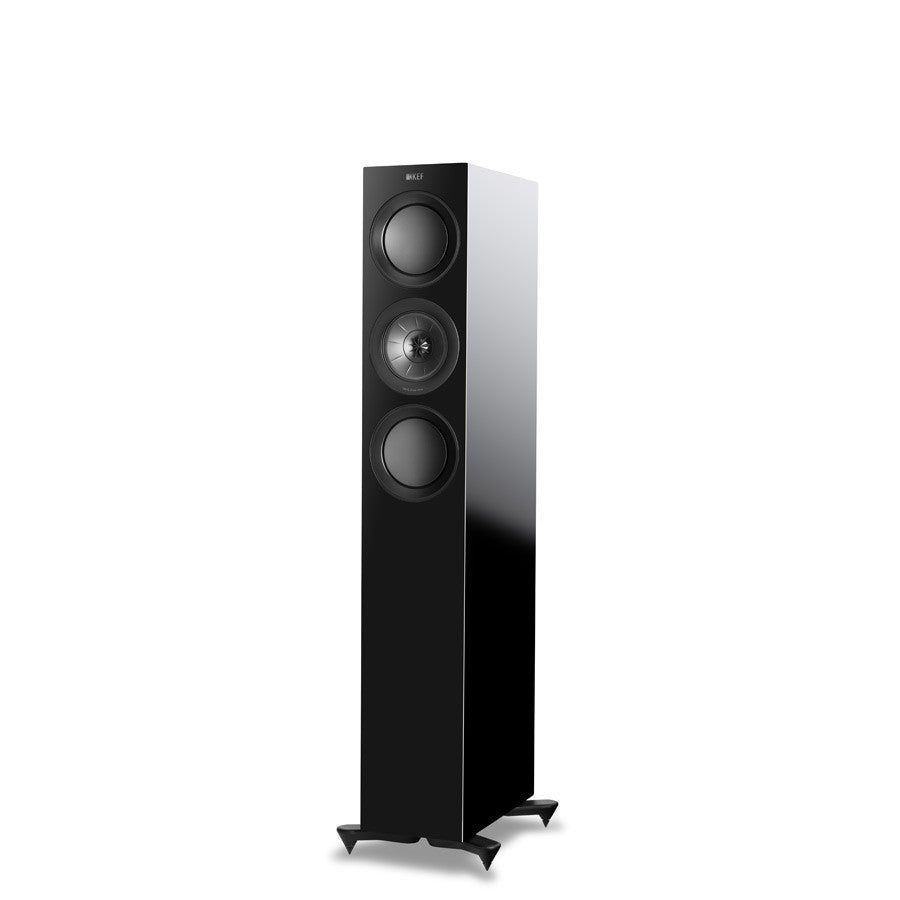

KEF

R5

R5

Regular price $4,895.00 AUD
Regular price $4,995.00 AUD Sale price $4,895.00 AUD
Sale Sold out
MODEL R5
DESIGN Three-way bass reflex
DRIVE UNITS Uni-Q Driver Array:
HF: 25mm (1in.) vented aluminium dome
MF: 125mm (5in.) aluminium cone
Bass Driver:
LF: 2x 130mm (5.25in.) hybrid aluminium
CROSSOVER FREQUENCIES 400Hz, 2.9kHz
FREQUENCY RANGE 38Hz-50kHz (-6dB)
TYPICAL IN-ROOM BASS RESPONSE 29Hz (-6dB)
FREQUENCY RESPONSE 52Hz-28kHz (±3dB)
HARMONIC DISTORTION <0.3% 120Hz-20kHz (90dB, 1m)
MAXIMUM OUTPUT 110dB
AMPLIFIER POWER 15-200W (recommended)
NOMINAL IMPEDANCE 8Ohms (min.3.2Ohms)
WEIGHT 27.3 kg (60.2 lbs.)
DIMENSION (H X W X D) 1025 x 175 x 343.5 mm (40.4 x 6.9 x 13.5 in.) with terminal*
DIMENSION (H X W X D) 1071.4 x 271.6 x 343.5 mm (42.2 x 10.7 x 13.5 in.) with terminal with Plinth*
DIMENSION (H X W X D) 1025 x 175 x 320 Cabinet only

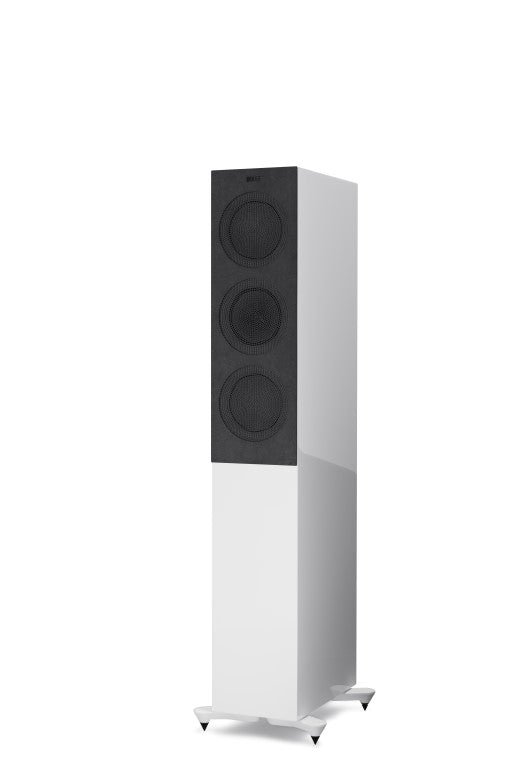

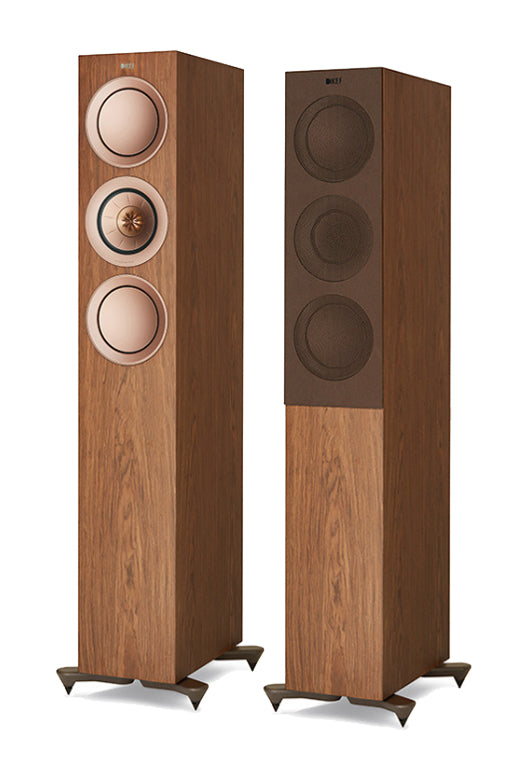

FINISHES Black Gloss / White Gloss / Walnut
DOCUMENT DOWNLOAD R Series White Paper
R Series Brochure
R Series Information Sheet
R Series User Manual
Maintenance Guide for R Series Microfibre Grille
REMARKS * Measurement per unit
