PMA-3000NE

The Denon PMA-3000NE is a powerhouse amplifier, providing 160 watts per channel at 4 ohms and 80 watts per channel at 8 ohms, ensuring exceptional sound quality even with the most demanding speakers. This unit is expertly designed and built in Denon's Shirakawa, Japan facility.

Key Features:

• 2 Channels: Delivers robust audio performance.
• Power Output: 160W per channel at 4 ohms, 80W per channel at 8 ohms.
• Phono Stage: Compatible with both MM and MC cartridges.
• Ultra AL32 Processing: Enhances audio resolution.

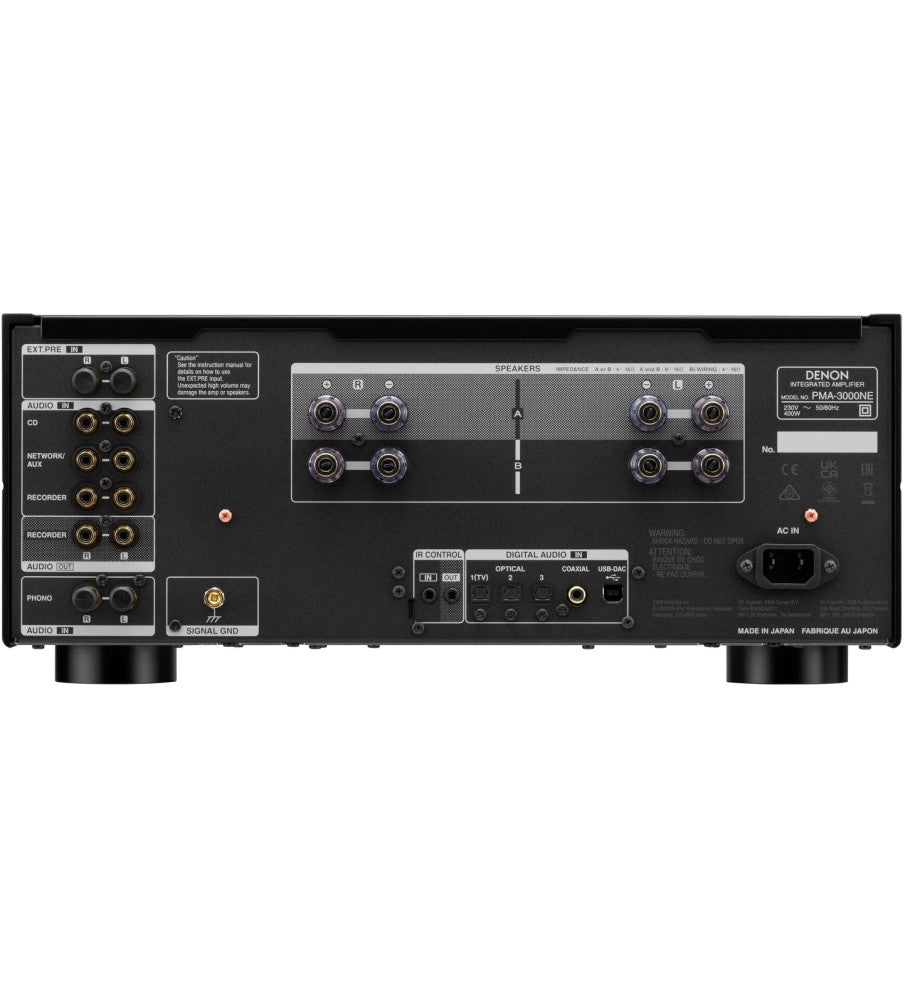

• Multiple Digital Inputs: Includes optical, coaxial, and USB connections.
• Pure Analog Mode: Ensures authenticity of sound from any source.

Performance:

The PMA-3000NE's push-pull amplifier design allows it to easily handle a variety of speakers, providing clarity and power whether driving large floor-standing models or more compact options.

High-Resolution Audio Integration:

Equipped with optical, coaxial, and USB-B inputs, this amplifier supports high-resolution audio up to 384kHz/32-bit. The Ultra AL32 Processing technology enhances waveform interpolation for a smooth listening experience.

Vinyl Reproduction:

Unlock the true potential of your vinyl collection with the PMA-3000NE's phono stage, accommodating both MM and MC cartridges for precise sound reproduction.

Design and Engineering:

Featuring an advanced amplifier architecture, the PMA-3000NE offers 80W per channel at 8 ohms and 160W at 4 ohms. Its UHC-MOS single push-pull circuit and differential 2-stage amplifier ensure clarity and linearity even with challenging speaker loads.

Denon's Legacy:

For over a century, Denon has been at the forefront of audio innovation, crafting products that reveal extraordinary detail. Our rich Japanese heritage informs every creation, each meticulously fine-tuned by our sound engineers, inviting you to experience music in a whole new way.

Specifications:

• Frequency Response: 5 Hz to 100 kHz (0 to -3 dB)
• RMS Power (4 Ω): 160W per channel
• RMS Power (8 Ω): 2 x 70W
• Input Sensitivity: EXT. PRE: 1.0 V / 15 kΩ (Gain: 28 dB)
• Input Impedance: PHONO (MM): 2.5 mV / 47 kΩ | PHONO (MC): 200 μV / 100 Ω
• Signal-to-Noise Ratio: PHONO (MM): 89 dB | PHONO (MC): 74 dB
• Total Inputs: 5 (1 phono input, 1 optical digital input, 1 USB B port)
• Warranty: Manufacturer's warranty in Australia

Dimensions:

• Size: 182 mm (H) x 434 mm (W) x 443 mm (D)
• Weight: 24.6 kg
