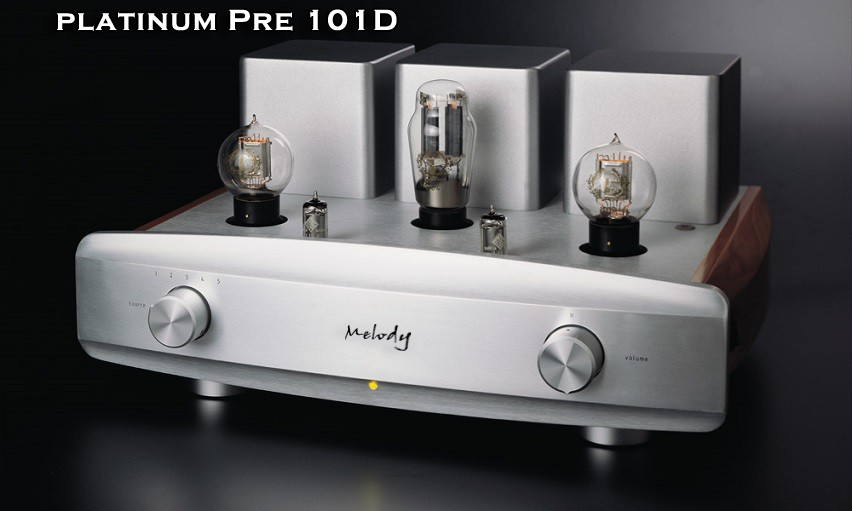

Platinum Pre 101D

Hi-Fi: Pre-Amplifier

Superlative HI-END Preamplifier designed for an audience without compromise. High internal design projected with Melody patents and sublime components constitute an absolute reference for this preamplifier. Technology and expert knowledge allow you to get a result like this. The tubes are made and assembled with very low tolerances so you can get a spectacular equal sign between the two channels.

Esoteric Pre-Amplifier Tube.

Tube Adopted 101D x 2, Pre-Tube WE404 x2 , Pot-Tube 5AR4 X 1.

Specifications

• Frequency Response: 3 Hz – 100 KHz
• Input Impedance: 250k Ohm
• Output Voltage: 3 Volt (max 28)
• Input sensitivity: 480mV
• Signal / Noise Ratio > 90dB
• THD: <0.02%
• Channel balance: < 0.5 dB (20Hz – 100kHz)
• Dimensions (L x A x P): 440 x 215 x 380
• Weight: 26kg
