Frequency Response
|
120–23,000 Hz ±3dB
|
|
Recommended Amplifier Power
|
20—130 watts per channel
|
|
Horizontal Dispersion
|
80°
|
|
Vertical Dispersion
|
80°
|
|
Sensitivity
|
89 dB/2.83 volts/meter
|
|
Impedance
|
6 Ohms Compatible with 4, 6, or 8 Ohm rated amplifiers.
|
|
Crossover Frequency
|
4,000 Hz
|
|
High Frequency Transducer
|
0.94" × 1" (2.4cm × 2.5cm) Folded Motion Transducer with 2.8" × 1.25" (13.3cm × 4.4cm) diaphragm
|
|
Low Frequency Transducer
|
Two 3.5" (8.9cm) poly cone with stamped steel basket. Non-resonant asymmetrical chamber format. Rigid structured dust cap to reduce cone break-up modes. Sealed.
|
|
Components
|
Custom air core coil and low DCR steel laminate inductors. Polyester film capacitors in series and low DF electrolytic capacitors in parallel. Overall system thermal/current protection.
|
|

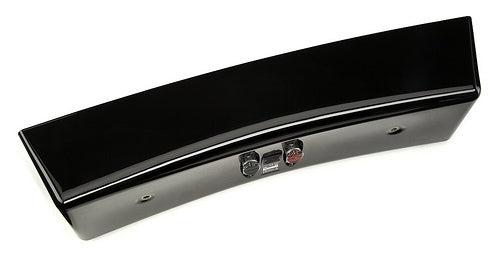

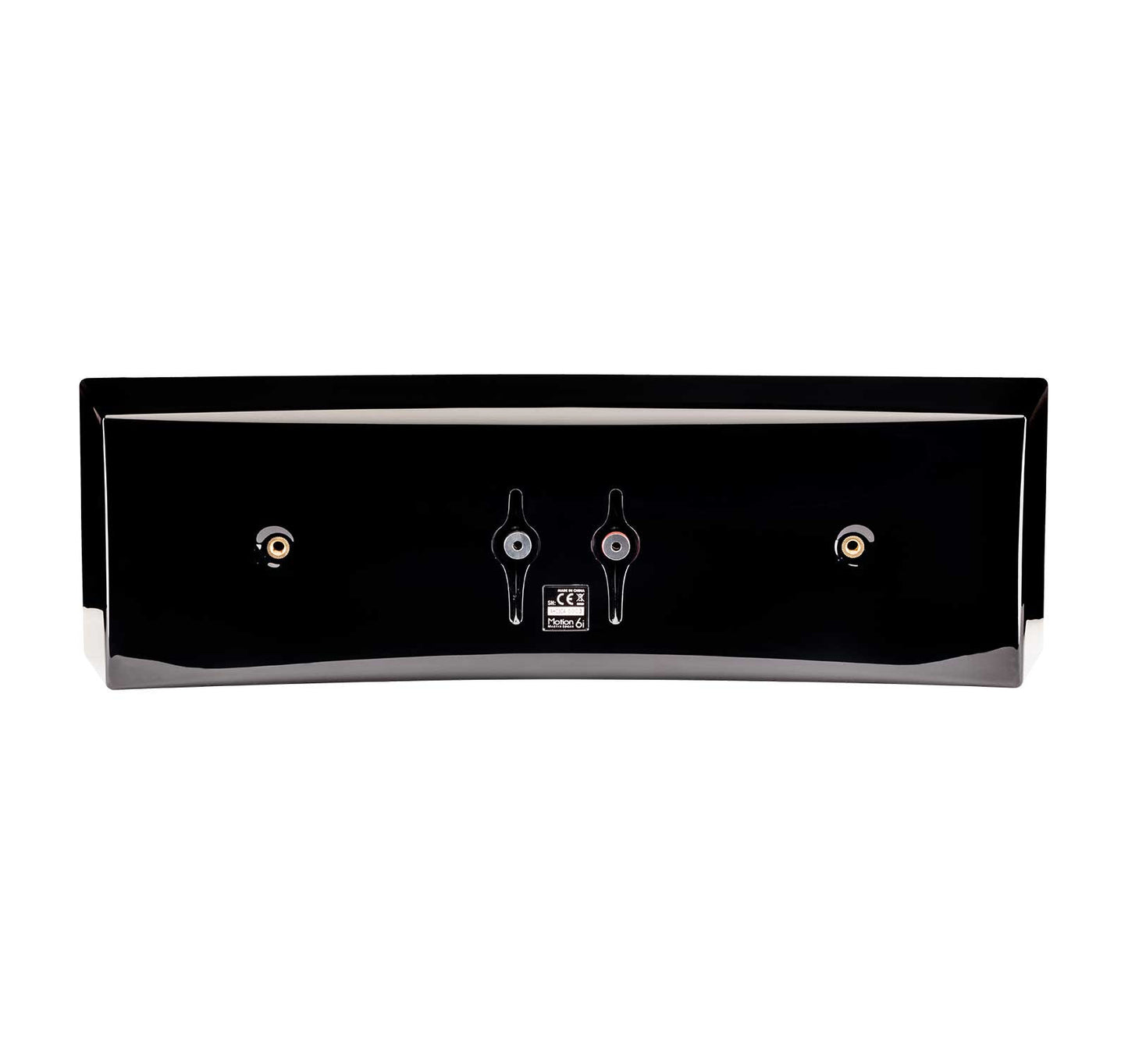

Inputs
|
Push style with banana jacks
|
|
Weight
|
5.7 lbs. (2.58 kg)
|
|
Dimensions
|
5.2" x 17.5" x 4 "
(13.2cm x 44.4cm x 10.1cm)
|
