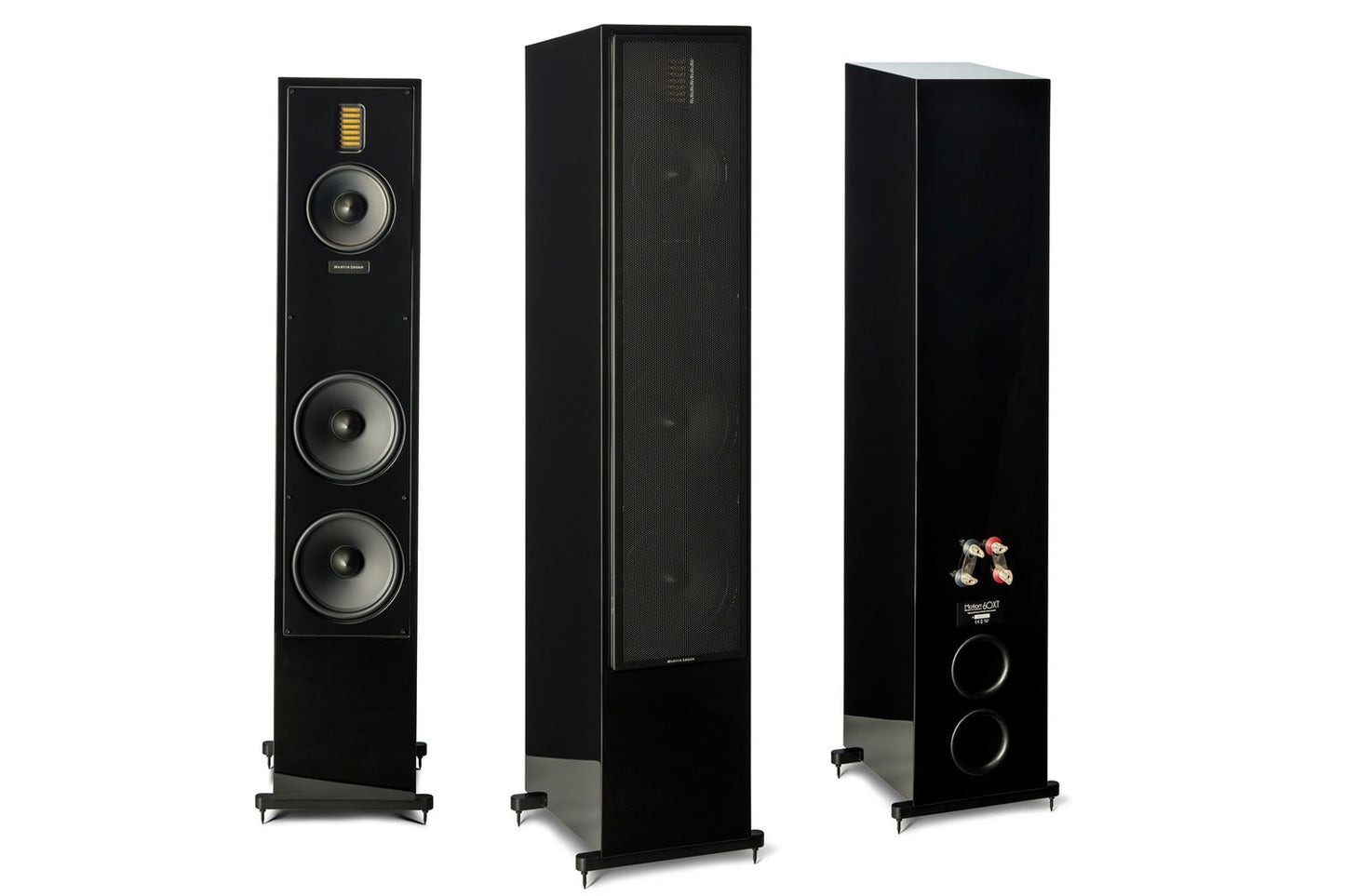

Martin Logan

Motion 60XT

Motion 60XT

Regular price $6,999.00 AUD
Regular price $7,499.00 AUD Sale price $6,999.00 AUD
Sale Sold out
Specifications are subject to change without notice

Frequency Response

35–25,000 Hz ±3dB

Recommended Amplifier Power

20—400 watts per channel

Horizontal Dispersion

80°

Vertical Dispersion

30°

Sensitivity

94 dB/2.83 volts/meter

Impedance

4 Ohms Compatible with 4, 6, or 8 Ohm rated amplifiers.

Crossover Frequency

400 & 2,200 Hz

High Frequency Transducer

1.25" × 2.4" (3.2cm × 6.1cm) Folded Motion XT Transducer with 4.5" x 2.75" (11.4cm × 7cm) diaphragm

Mid Frequency Transducer

6.5” (16.5cm) aluminum cone with cast polymer basket. Sealed chamber format. Rigid structured dust cap to reduce cone break-up modes.

Low Frequency Transducer

Two 8” (20.3cm) aluminum cone with cast aluminum basket. Non-resonant asymmetrical chamber format. Rigid structured dust cap to reduce cone break-up modes.

Components

Custom air core coil and low DCR steel laminate inductors. Polypropylene film capacitors in series and low DF electrolytic capacitors in parallel. Tweeter thermal/current protection.

Inputs

Custom 5-way bi-wire tool-less binding posts

Weight

66 lbs. (30 kg)

Dimensions

48" x 11.4" x 14.4 " (121.8cm x 29cm x 36.6cm)
