Frequency Response
|
70–23,000 Hz ±3dB
|
|
Recommended Amplifier Power
|
20—150 watts per channel
|
|
Horizontal Dispersion
|
80°
|
|
Vertical Dispersion
|
80°
|
|
Sensitivity
|
90 dB/2.83 volts/meter
|
|
Impedance
|
4 Ohms Compatible with 4, 6, or 8 Ohm rated amplifiers.
|
|
Crossover Frequency
|
2,900 Hz
|
|

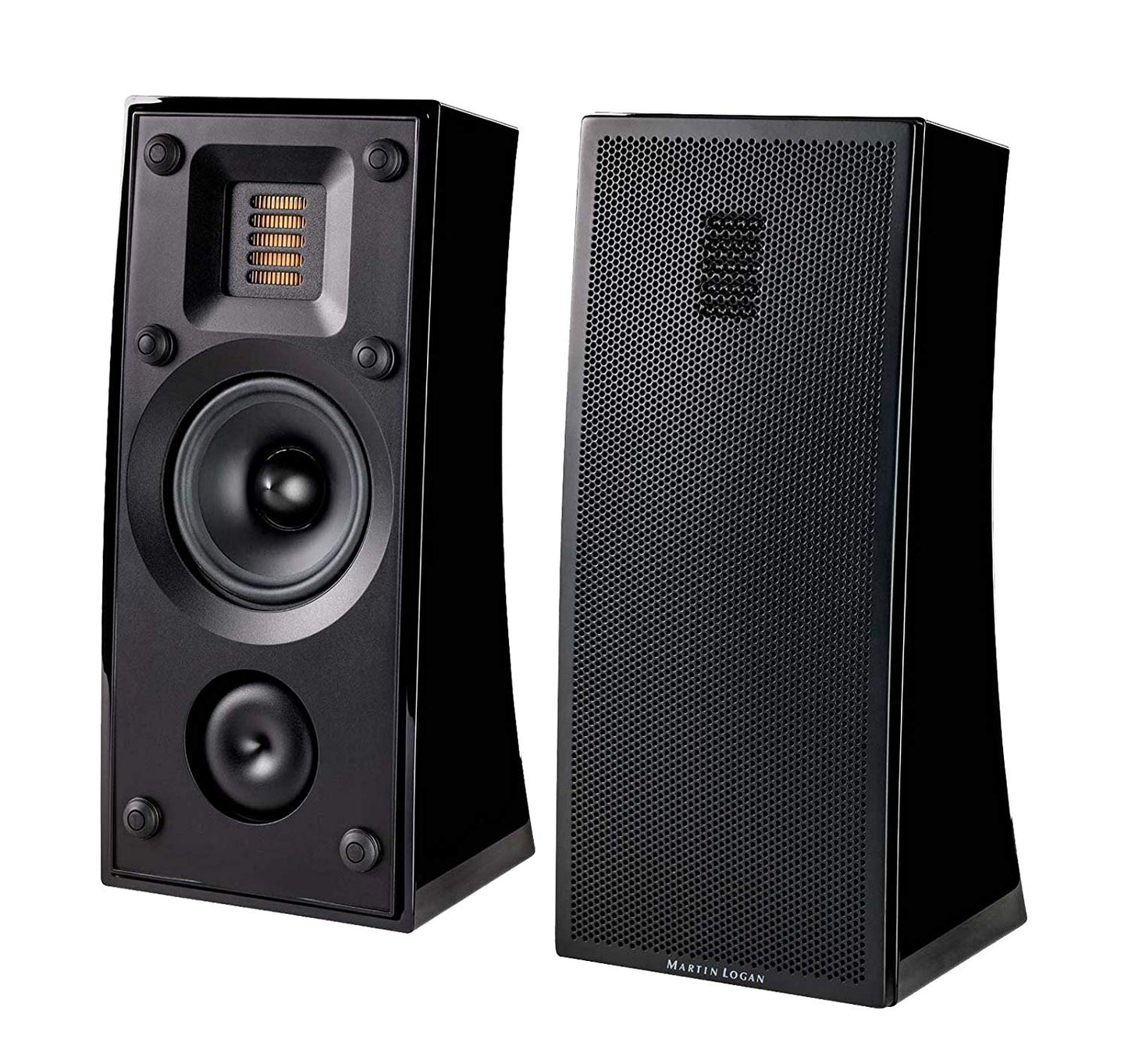

High Frequency Transducer
|
1" × 1.4" (2.6cm × 3.6cm) Folded Motion Transducer with 5.25" × 1.75" (13.3cm × 4.4cm) diaphragm
|
|
Low Frequency Transducer
|
4" (10.2cm) paper cone with stamped steel basket. Non-resonant asymmetrical chamber format. Rigid structured dust cap to reduce cone break-up modes. Folded bass reflex port.
|
|
Components
|
Custom air core coil and low DCR steel laminate inductors. Polyester film capacitors in series and low DF electrolytic capacitors in parallel. Overall system thermal/current protection.
|
|

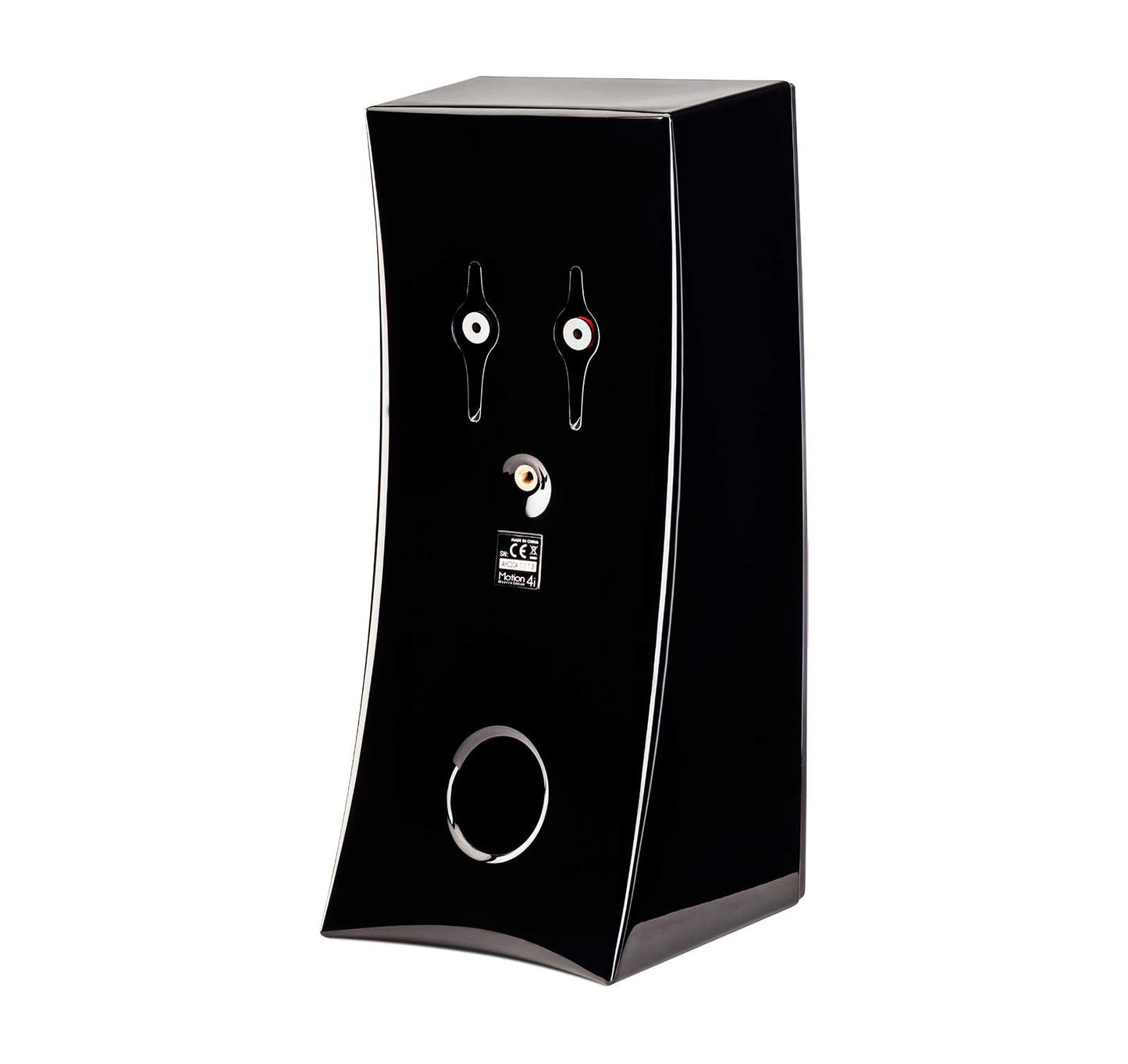

Inputs
|
Push style with banana jacks
|
|
Weight
|
6 lbs. (2.72 kg)
|
|
Dimensions
|
12.6" x 5.6" x 5.7 "
(32cm x 14.3cm x 14.5cm)
|
