Motion 35XT

Frequency Response

50–25,000 Hz ±3dB

Recommended Amplifier Power

20—250 watts per channel

Horizontal Dispersion

80°

Vertical Dispersion

30°

Sensitivity

92 dB/2.83 volts/meter

Impedance

4 Ohms Compatible with 4, 6, or 8 Ohm rated amplifiers.

Crossover Frequency

2,200 Hz

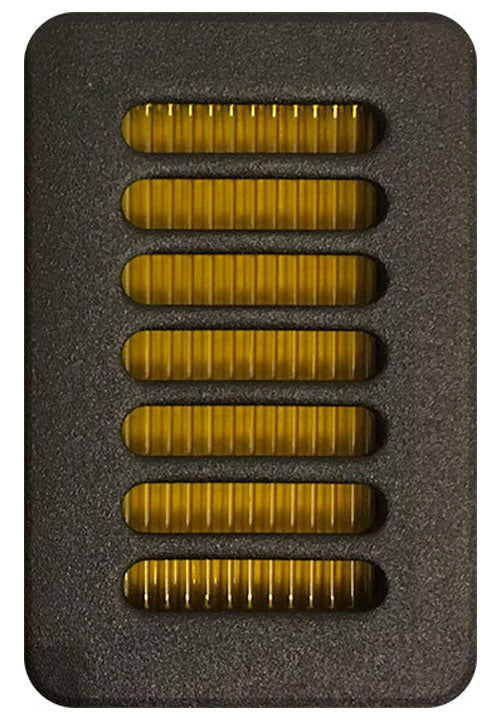

High Frequency Transducer

1.25" × 2.4" (3.2cm × 6.1cm) Folded Motion XT Transducer with 4.5" x 2.75" (11.4cm × 7cm) diaphragm

Low Frequency Transducer

6.5” (16.5cm) aluminum cone with cast polymer basket. Non-resonant asymmetrical chamber format. Rigid structured dust cap to reduce cone break-up modes.

Components

Custom air core coil and low DCR steel laminate inductors. Polypropylene film capacitors in series and low DF electrolytic capacitors in parallel. Tweeter thermal/current protection.

Inputs

Custom 5-way tool-less binding posts

Weight

18.5 lbs. (8.4 kg)

Dimensions

13.5" x 7.6" x 11.8 "
(34.3cm x 19.2cm x 30cm)
