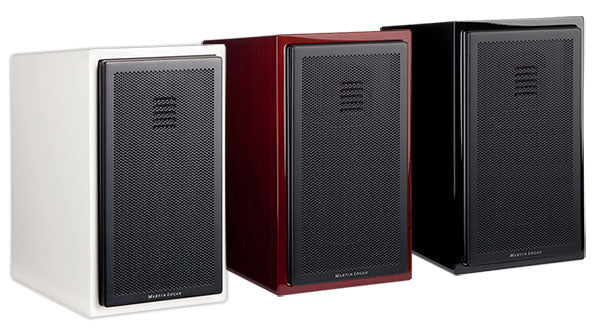

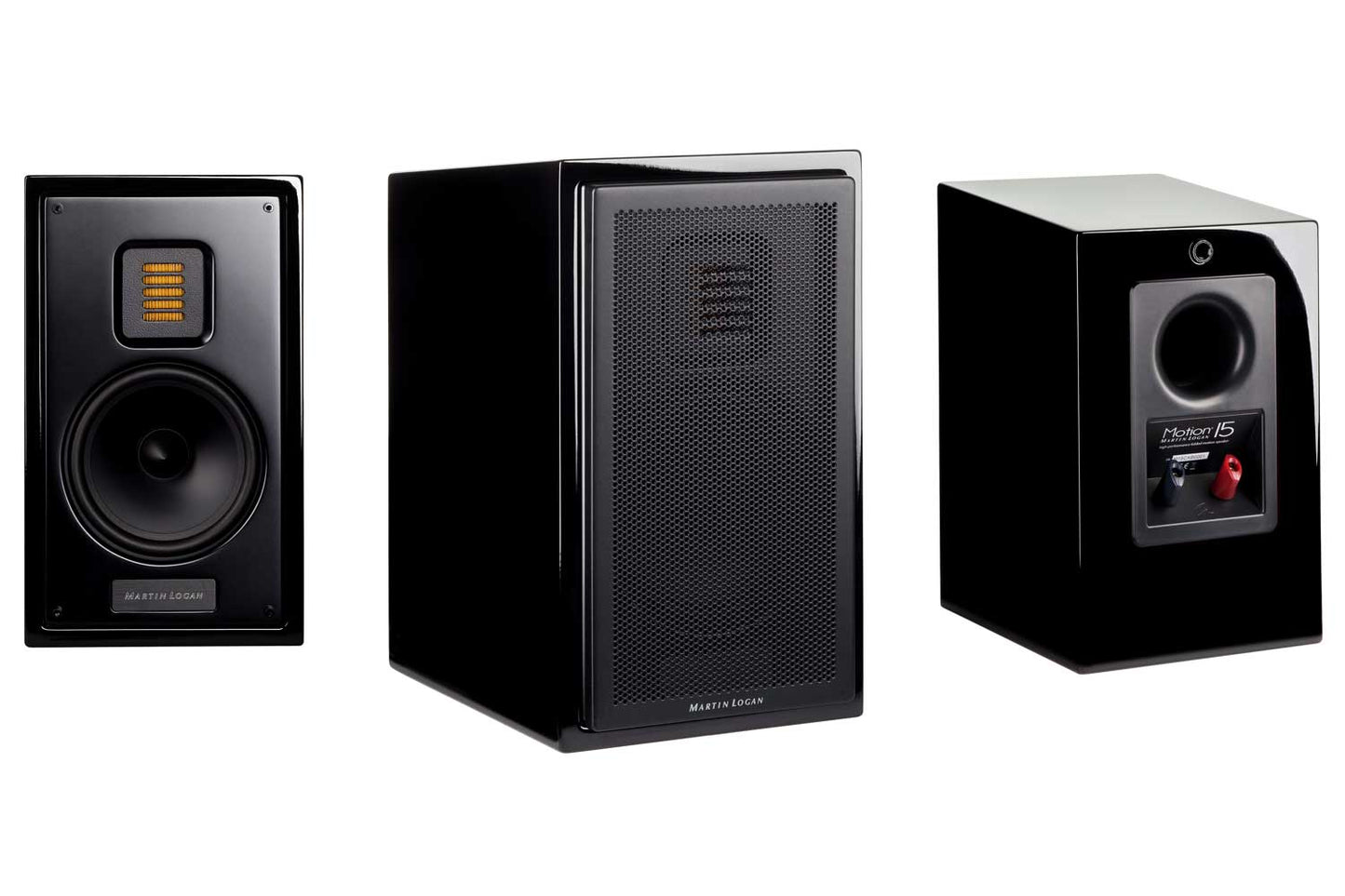

Motion 15

Frequency Response

60–25,000 Hz ±3dB

Recommended Amplifier Power

20—200 watts per channel

Horizontal Dispersion

80°

Vertical Dispersion

80°

Sensitivity

92 dB/2.83 volts/meter

Impedance

5 Ohms Compatible with 4, 6, or 8 Ohm rated amplifiers.

Crossover Frequency

2,700 Hz

High Frequency Transducer

1" × 1.4" (2.6cm × 3.6cm) Folded Motion Transducer with 5.25" × 1.75" (13.3cm × 4.4cm) diaphragm

Low Frequency Transducer

5.25” (13.3cm) aluminum cone with cast basket. Non-resonant asymmetrical chamber format. Rigid structured dust cap to reduce cone break-up modes.

Components

Custom air core coil and low DCR steel laminate inductors. Polypropylene film capacitors in series and low DF electrolytic capacitors in parallel. Overall system thermal/current protection.

Inputs

Custom 5-way tool-less binding posts

Weight

12 lbs. (5.4 kg)

Dimensions

11.4" x 6.8" x 9.5 "
(29cm x 17.3cm x 24cm)
