Marantz

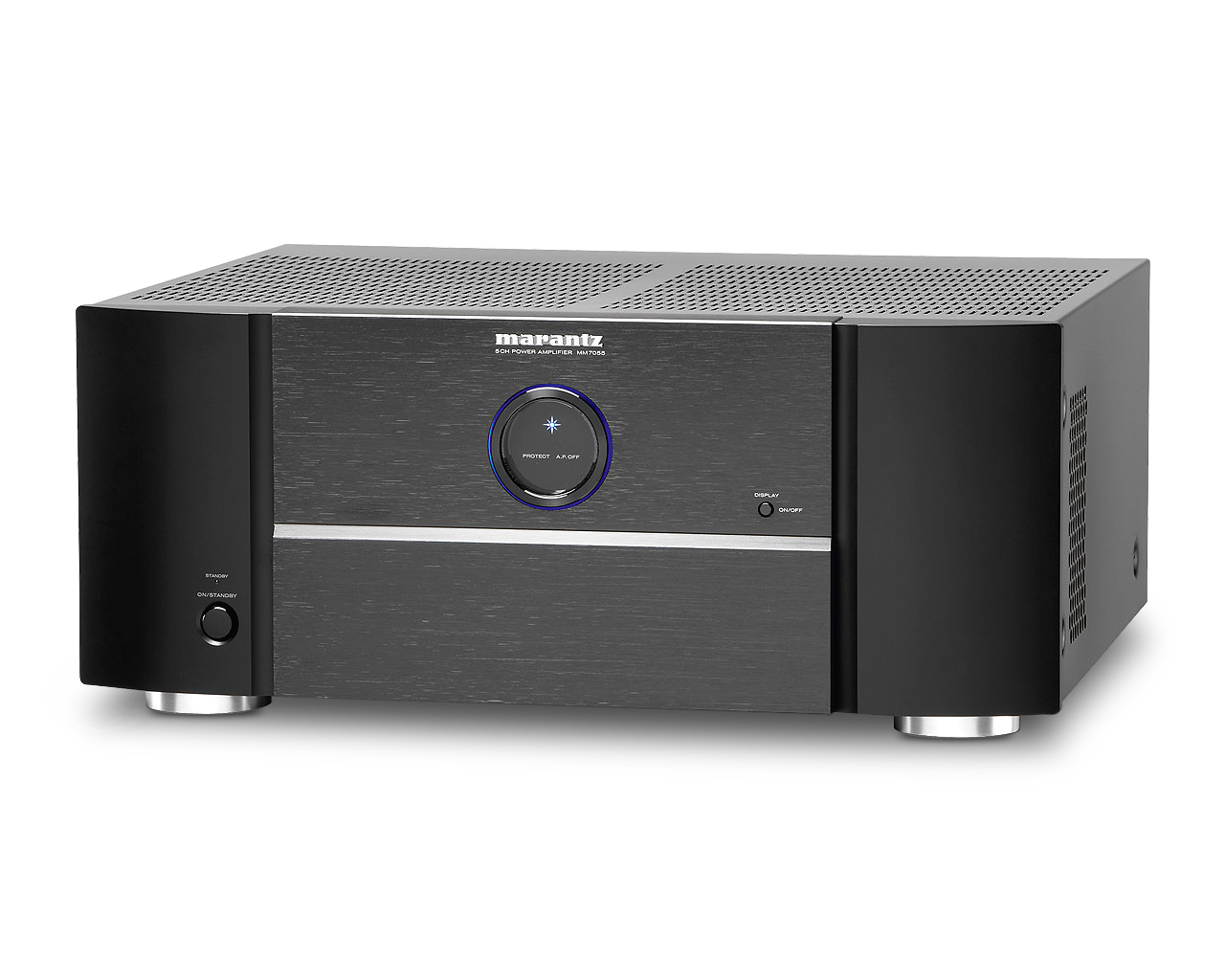

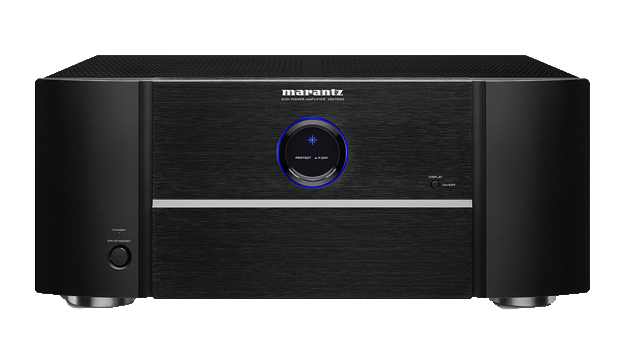

Marantz MM7055

Marantz MM7055

$2,159.00 AUD
$2,699.00 AUD $2,159.00 AUD
Sale Sold out

Features

Channels 5
Current Feedback Topology Yes
Phono EQ: Standard / Current Feedback / Constant Current Feedback No / No / No
HDAM version No
Power Transformer: Toroidal / El No / Yes
High Grade Audio Components Yes
Customised Components Yes
Symmetric PCB Layout No
Aluminium extrusion heat sink Yes
Copper Plated Chassis No
Tri Tone Control (Bass / Mid / Treble) No
Balance / Bass / Treble / Loudness No

Others

Linear Drive Power Supply Yes
CCNE No
Liniear volume control No
BTL Possibility No
BI-AMP and Multichannel option No
Choke input No
Shottky diodes No
Input buffer amp (all inputs / CD only) Yes / No
Separate Solid Heat Sinks No
System block shielding: Copper / metal / none No / No / No
Double Layer Bottom Plate No
Low noise LCD display Yes
Low noise LED display No
Power Meter : Analog / Digital No / Yes
Source Direct No
Power Amp direct Yes
Standby Mode Yes
5mm aluminium top plate No

Inputs/Outputs

Audio Inputs No
Phono Input: MM / MC No
Audio Outputs No
Balanced In / Out 5 / No
Pre-out / Main-in No / 5
Power Amp Direct IN No
Gold Plated Cinch No
Speaker A / B No
Speaker Terminal: Screw / Marantz / WBT Yes / No / No
Number of terminals 5
D-Bus Yes
Floating Control Bus (3.5 mm mono jack x 2) No
Remote Power Control Trigger - In Out Yes
Flasher In / IR Receiver In Yes / No
Headphone Out No
iPod input (direct / docking station) No / No

Specifications

Power Output (8 / 4 Ohm RMS) 140 W / 170 W (6)
Power Output (8 / 4 Ohm DIN) No
Power Output (8 / 4 Ohm IHF) No
Bridged Power Output (8 Ohm RMS) No
Frequency response 8 Hz-100 kHz (+-3 dB)
Total Harmonic Distortion 0.03% (20 Hz - 20 kHz)
Damping Factor 100
Input Sensitivity: MM No
Input Sensitivity: MC No
Signal to Noise Ratio: MM/MC No
Input Sensitivity: High level 1.2 V / 22 K
Input Sensitivity: Balanced High level 2.4 V / 30 K
Signal to Noise Ratio: High level 105 dB

General

Available Colors: Gold / Silver / Black / Silver-Gold No / No / Yes / No
Metal Front Panel Yes
Power Consumption in W 400
Standby Consumption in W 0.4
Auto Power off Yes
Detachable Power Cable Yes
Remote Control No
System Remote Function No
Maximum Dimensions (W x D x H) in mm 440 x 183 x 384
Weight in kg 15.2
