Marantz
Marantz AV Amplifier AMP20 Black
Marantz AV Amplifier AMP20 Black
Couldn't load pickup availability
AMP 20 is a remarkably powerful 12-channel amplifier, and can be paired with AV 20 for an elite, reference-level home theater system.
- Crafted in Shirakawa, Japan
- 12 Channels
- 200 Watts per Channel
- Exclusive HDAM
- Custom Switching Amplifiers
- Selectable Output Modes
Technical Specifications
|

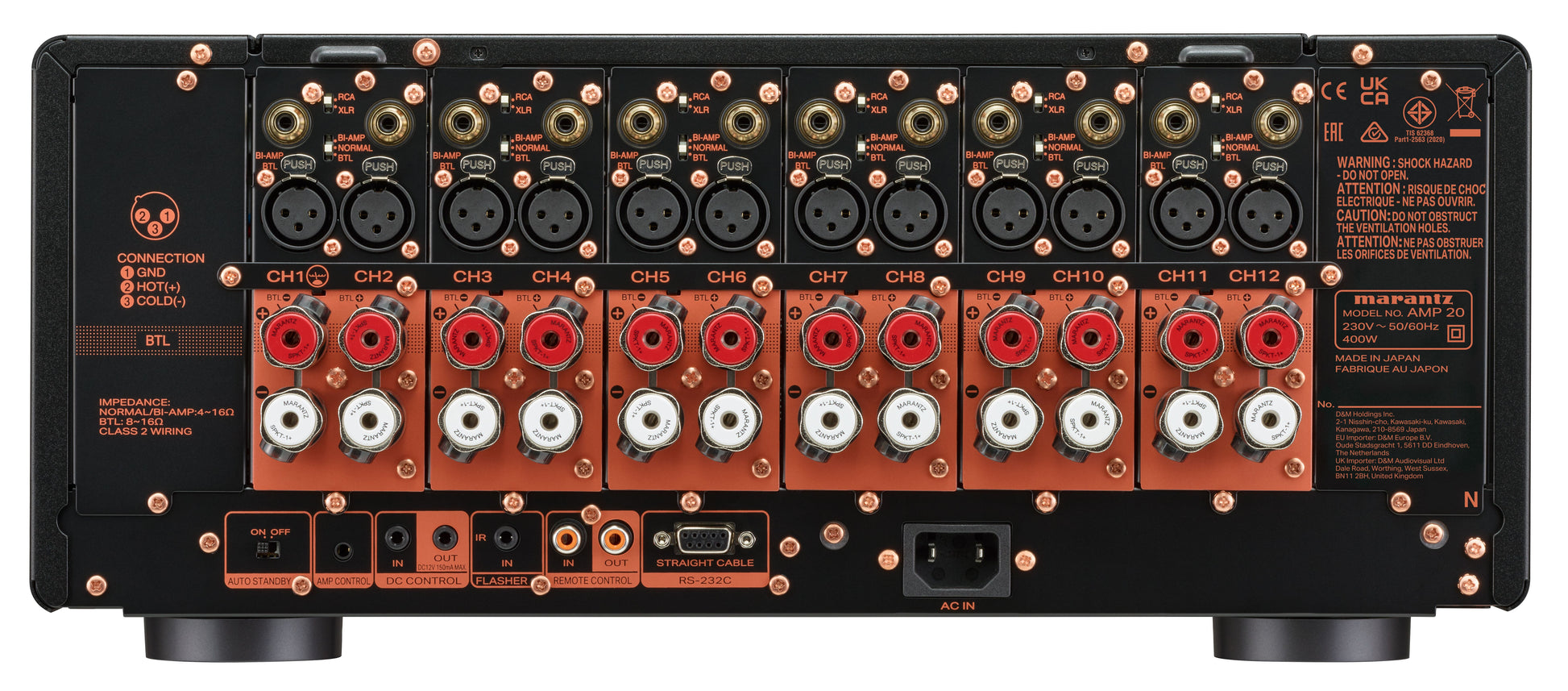

Inputs/Outputs |
|
|
|
Audio |
Main Amplifier In |
Balanced & Unbalanced: 12ch (Exclusive use by a selector switch.) |
|
Other |
Speaker Terminal |
SPKT-1+ |
|
|
Number of Speaker Terminals |
12 |
|
|
Bi-Amp Drive / BTL Drive |
Yes / Yes |
|
|
Level Meter |
Yes |
|
|
Chassis |
Copper Plated |
|
Multi-Room |
|
|
|
RS232 Control |
|
Yes |
|
IR Flasher In |
|
Yes |
|
Marantz Remote Bus |
Yes |
|
|
DC Trigger Input / Output |
1 / 1 |
|
|
Specifications |
|
|
|
Number of Power Amps |
12 |
|
|
Power Output (8 ohm, 1 kHz, 0.05% 2ch Drive) Normal / BTL |
200W / 400W |
|
|
Power Output (4 ohm, 1 kHz, 0.7% 2ch Drive) Normal |
400W |
|
|
Power Output (8 ohm, 1 kHz, 0.7% 5ch Drive) Normal |
200W |
|
|
General |
|
|
|
Front Display |
|
Level Meter |
|
Auto Power Off |
|
Yes |
|
Metal Front Panel |
|
Yes |
|
Power Consumption |
400W |
|
|
Power Consumption, No-Sound |
110W |
|
|
Standby Consumption |
0.2W |
|
|
Maximum Dimensions (W × D × H) |
442 × 442 × 191 mm |
|
|
Weight |
|
18.0 kg |
|
What's in the Box |
|
Main unit, quick start guide, AC cord, Amp control cable, Remote control cable, SP terminal wrench |
|
EAN |
|
0747192145743 |
