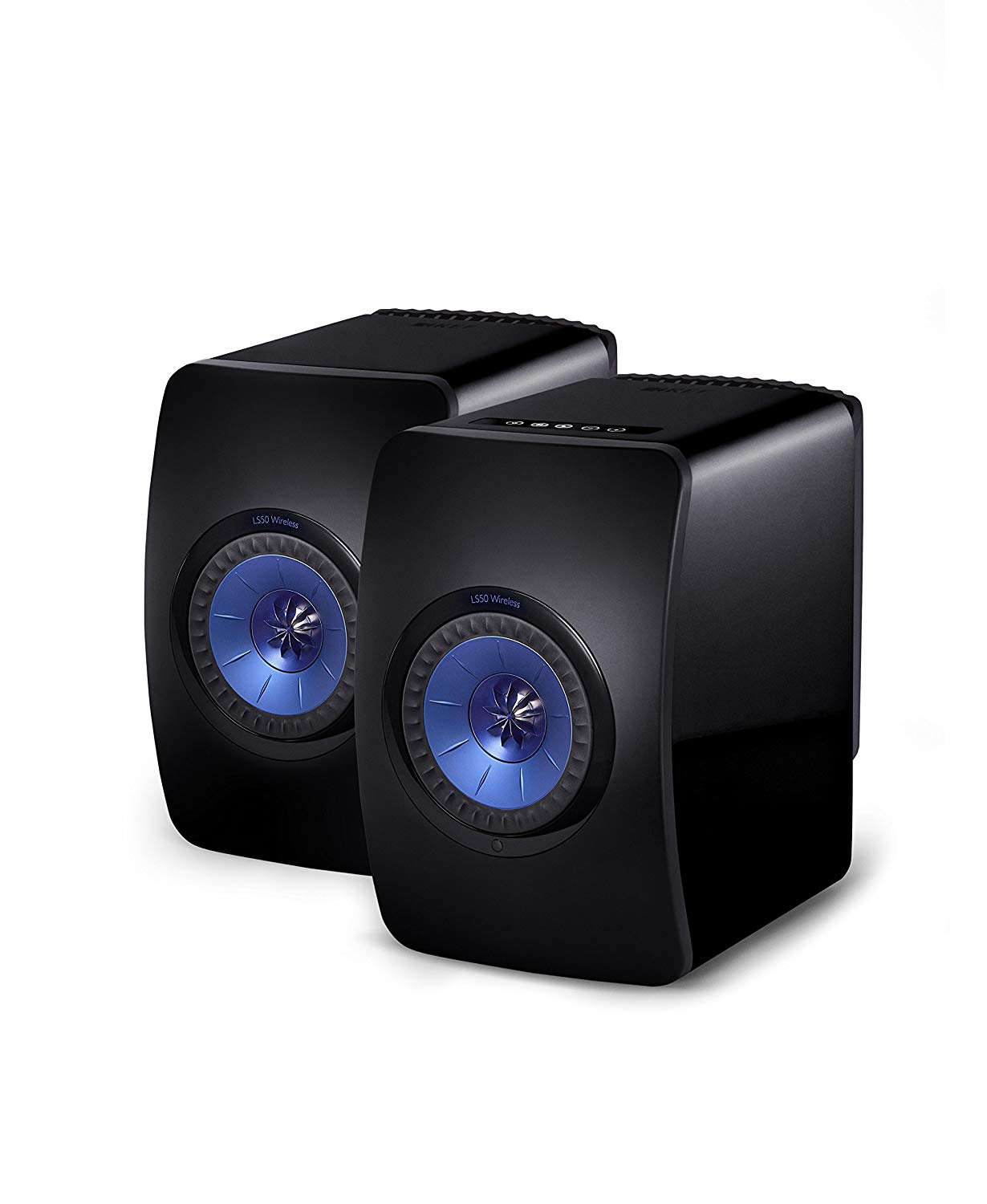

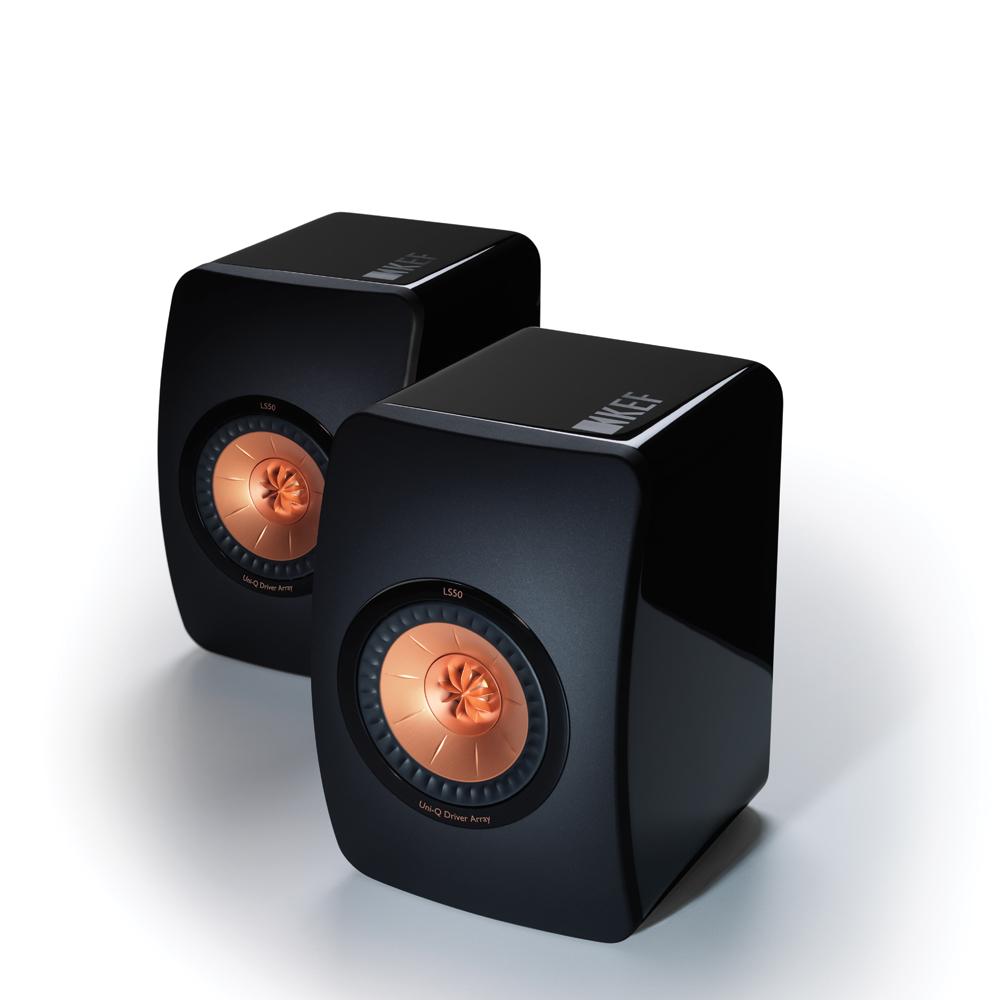

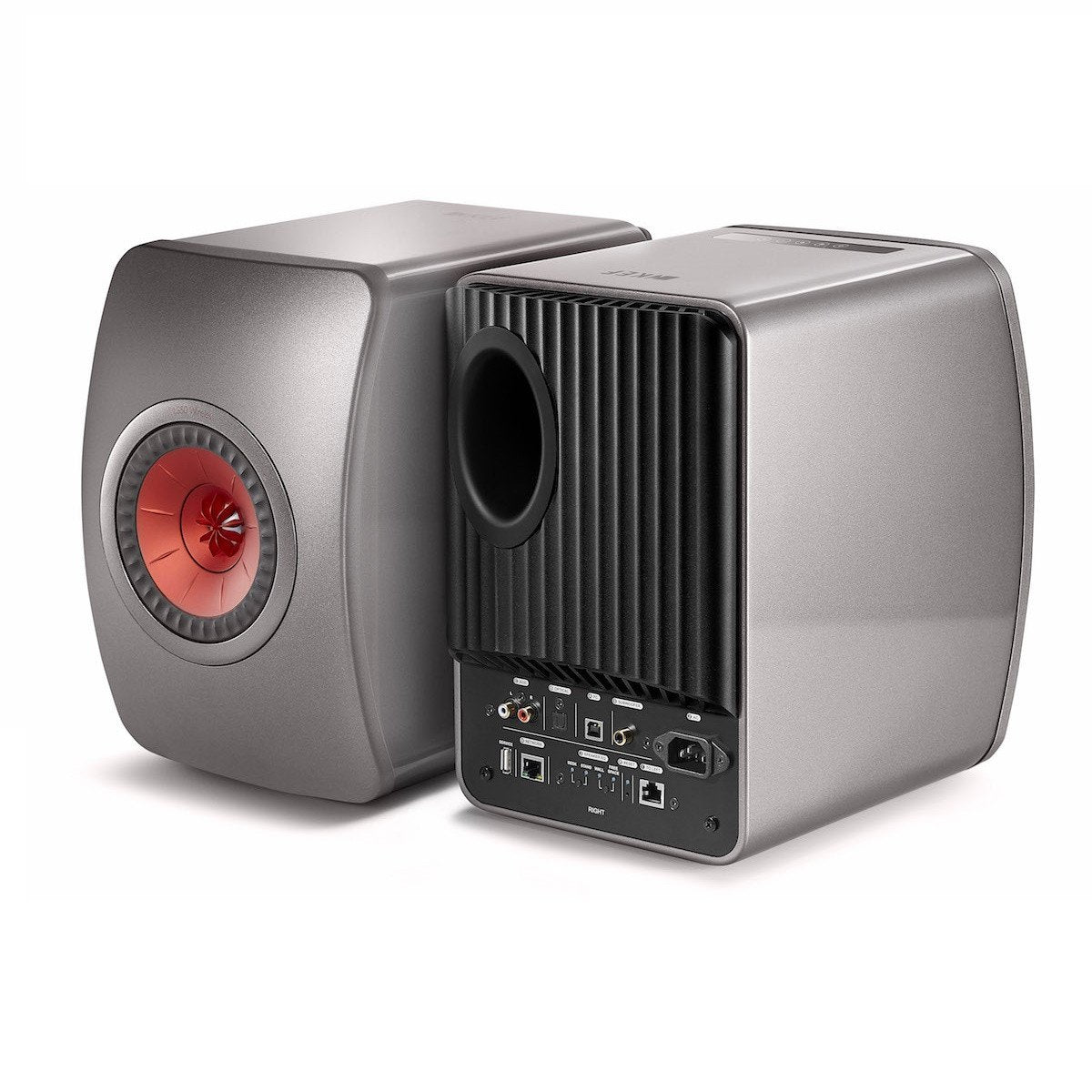

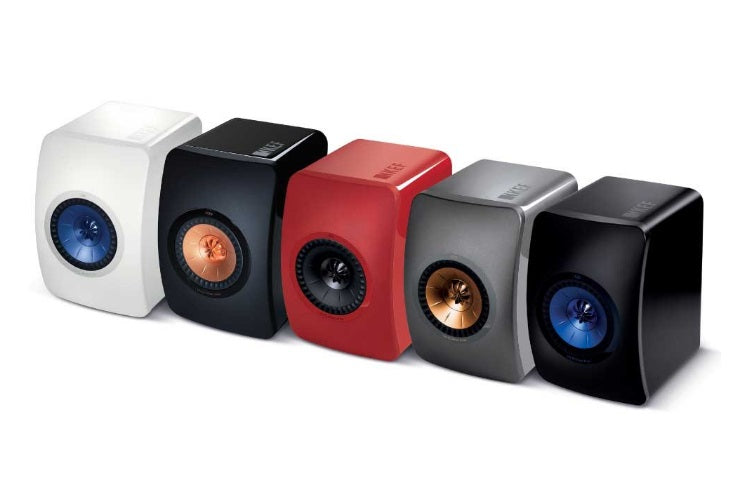

LS50W
LS50W
Regular price
$4,180.00 AUD
Regular price
$4,295.00 AUD
Sale price
$4,180.00 AUD
Unit price
/
per
DESIGN | Two-way bass reflex |
---|---|
DRIVE UNITS | Uni-Q driver array: HF: 25mm (1in.) vented aluminium dome LF/MF: 130mm (5.25in.) magnesium/aluminium alloy |
FREQUENCY RANGE | 47Hz - 45kHz (-6dB) |
FREQUENCY RESPONSE | 79Hz - 28kHz (±3dB) |
CROSSOVER FREQUENCIES | 2.2kHz |
MAXIMUM OUTPUT | 106dB |
AMPLIFIER REQUIREMENTS | 25 - 100 W |
SENSITIVITY | 85dB (2.83V/1m) |
HARMONIC DISTORTION | 2nd & 3rd harmonics (90dB, 1m) <0.4% 175Hz-20kHz |
NOMINAL IMPEDANCE | 8 Ohms (min.3.2 Ohms) |
DIMENSIONS | 302 x 200 x 278 mm / 11.9 x 7.9 x 10.9 in. (H x W x D with terminal) |
WEIGHT | 7.2kg (15.8lbs) |
UNIT MEASUREMENT | Pair |
DOCUMENT DOWNLOAD |
LS50 Brochure LS50 Information Sheet LS50 Manual |
