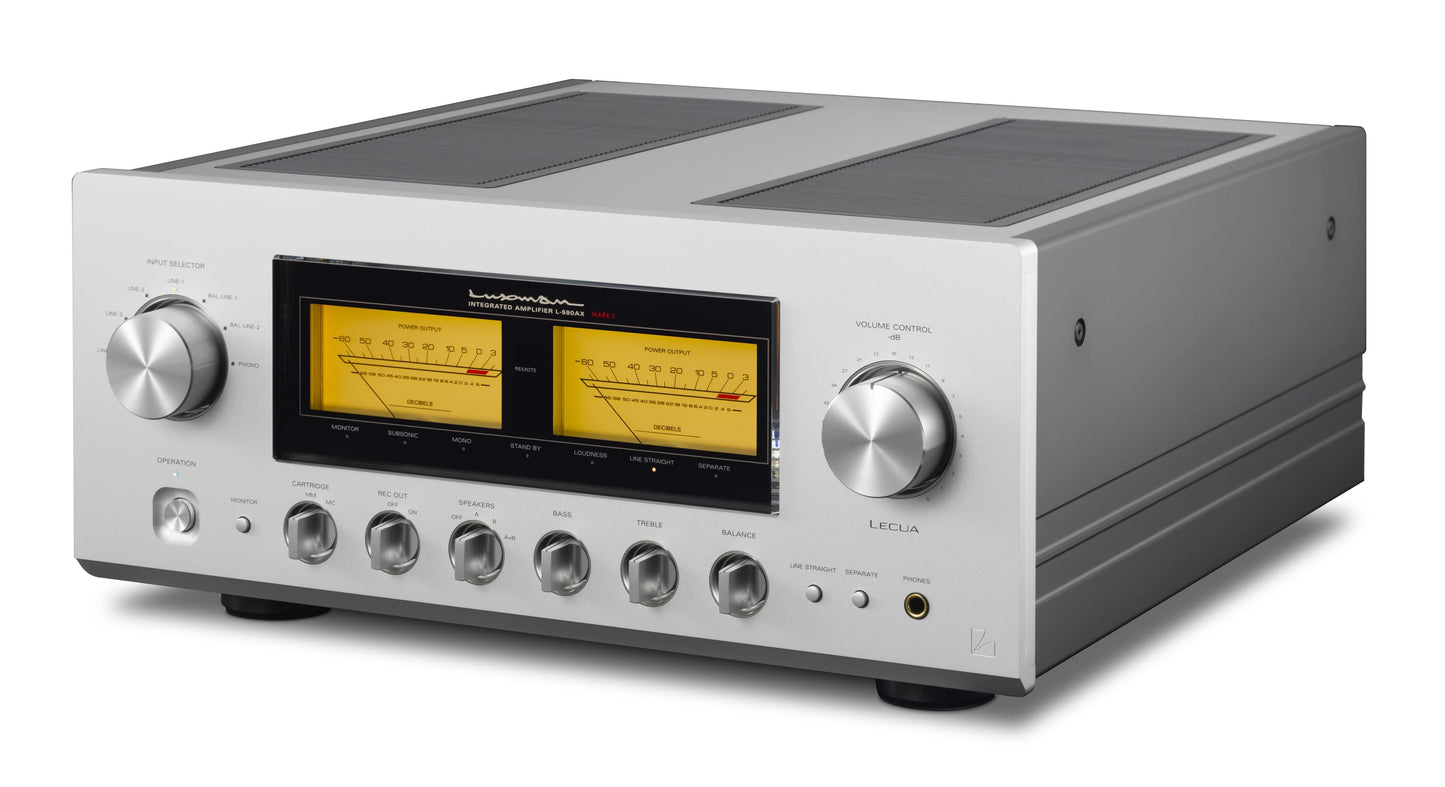

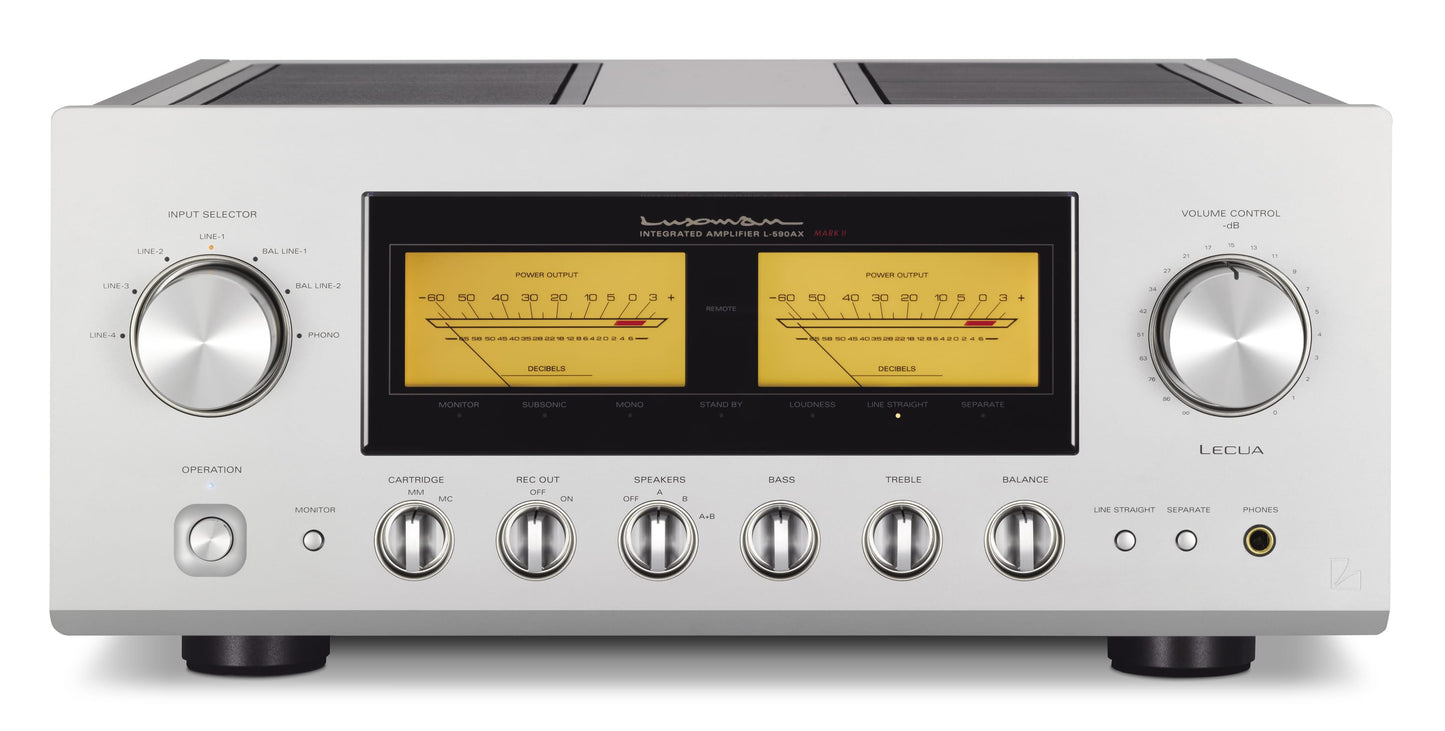

L-590AXII

Specification

Rated Output: 2 x 30W RMS/8Ω 2 x 60W RMS/4Ω
Input Sensitivity/Impedance: PHONO (MM): 2.5 mV/47 k Ω
PHONO (MC): 0.3 mV/100 Ω
the LINE: 180mV/47 k Ω
Total Harmonic Distortion: <0.005% (1kHz/8 Ω), less than 0.02% (20 Hz ~ 20kHz/8 Ω)
Frequency Response: 20Hz ~ 100kHz(-3dB)
S/N Ratio: LINE:107 dB, 20 Hz-100 kHz (+ 0,-3.0dB)
Line Inputs: 4 x LINE, 2 x Balance, 1 x MM/MC(switchable), 1 x TAPE, 1 x Power Amp in
Line Outputs: 1 x Pre-Amp out, 1 x TAPE, 1 x headphones
Speaker Outputs: Speaker A/B switchable, Speaker A+B
Dimensions (WHD): 17.3" x 7.6" x 18.2"
Weight: 62.6 lbs.
