Rated output: 20W + 20W (8Ω), 40W + 40W (4Ω)

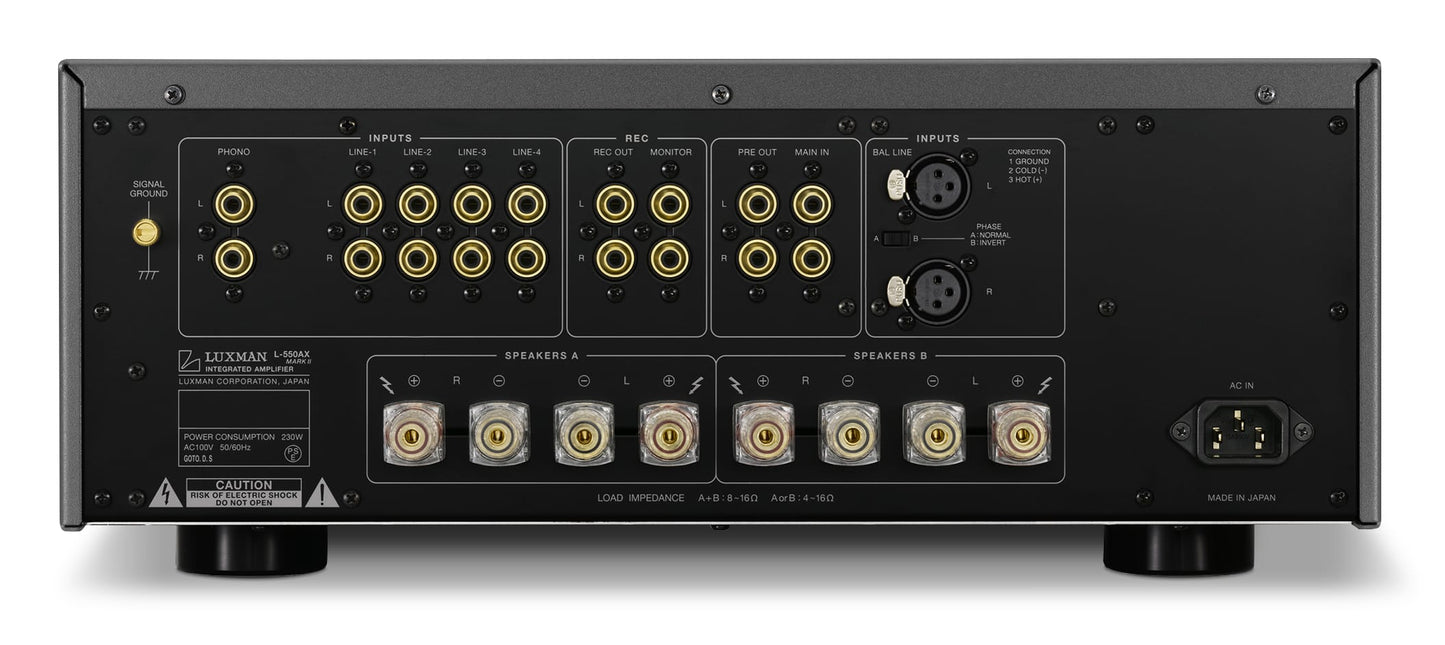

Input, recording input and output: line x 4, phono 1 (MM/MC switching), balanced line x 1, recording input and output x1, separate input separate input and output: and output x 1- speaker output A/B 2 system (AB simultaneous can be output)

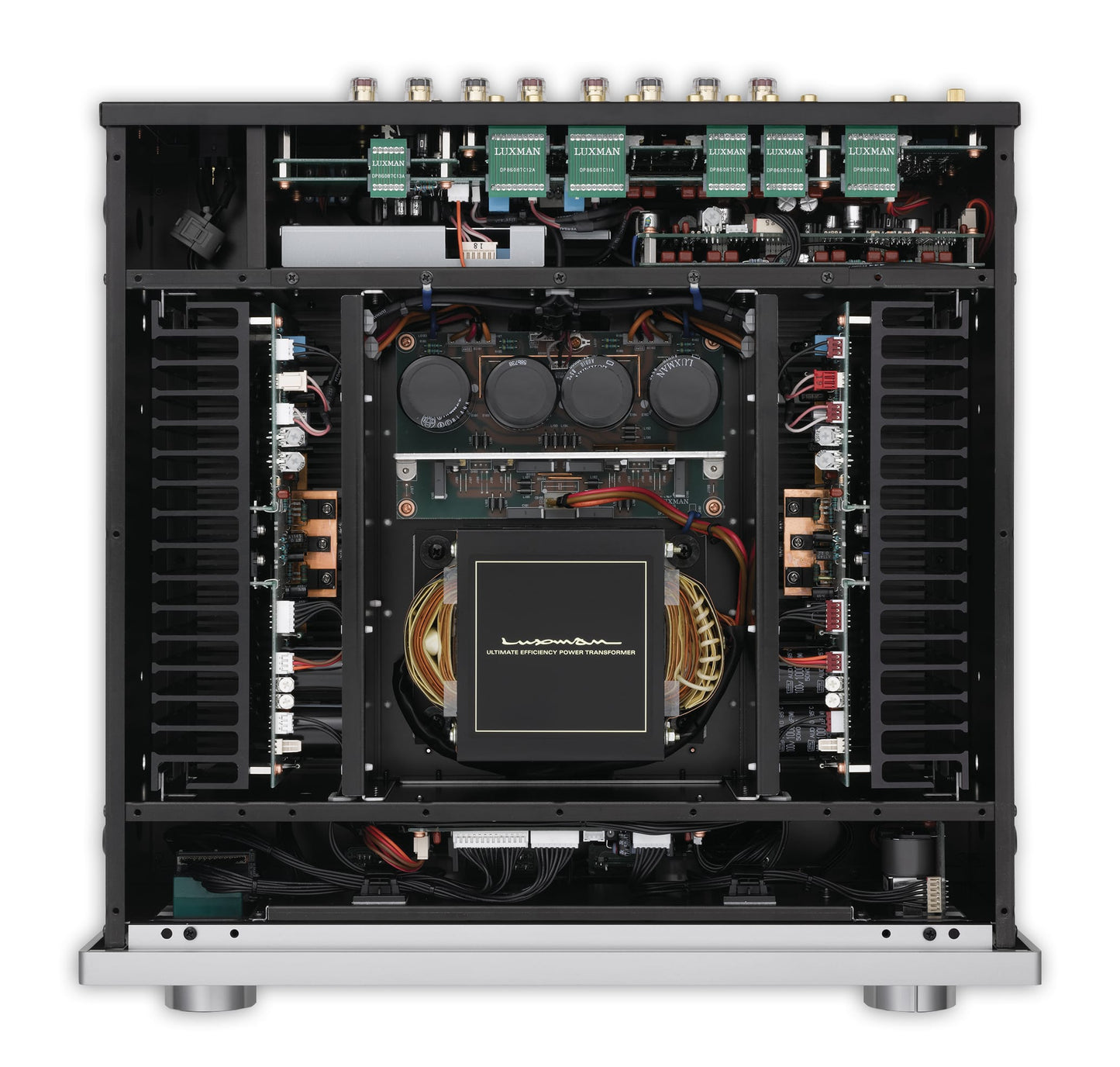

Amplifier circuit, output configuration: ODNF4.0, bipolar parallel push-pull
Input sensitivity/input impedance: PHONO (MM): 2.5mV/47kΩ, PHONO (MC): 0.3mV/100Ω, LINE: 180mV/47kΩ
Total harmonic distortion: less than 0.007% (1kHz/8Ω), 0.02% (20Hz ~ 20kHz/8Ω)
S/N ratio, frequency characteristic: LINE: 105dB or more, 20Hz ~ 100kHz (+ 0, -3.0dB)
Power consumption: 230W, 170W (when there is no signal), 0.4W (standby)
Dimensions (WHD): 17.3" × 7.0" × 17.9"
Weight: 53.6 lbs.
