Frequency Response
|
29–23,000 Hz ±3dB
|
|
Recommended Amplifier Power
|
20—550 watts per channel
|
|
Horizontal Dispersion
|
30°
|
|
Vertical Dispersion
|
44" (112cm) line source
|
|
Sensitivity
|
91 dB/2.83 volts/meter
|
|
Impedance
|
4 Ohms, 0.6 at 20kHz Compatible with 4, 6, or 8 Ohm rated amplifiers.
|
|
Crossover Frequency
|
300Hz
|
|
High Frequency Transducer
|
XStat™ CLS™ electrostatic transducer » Panel Dimensions: 44" x 11" (112 x 28cm) » Radiating Area: 484 in² (3,136 cm² )
|
|

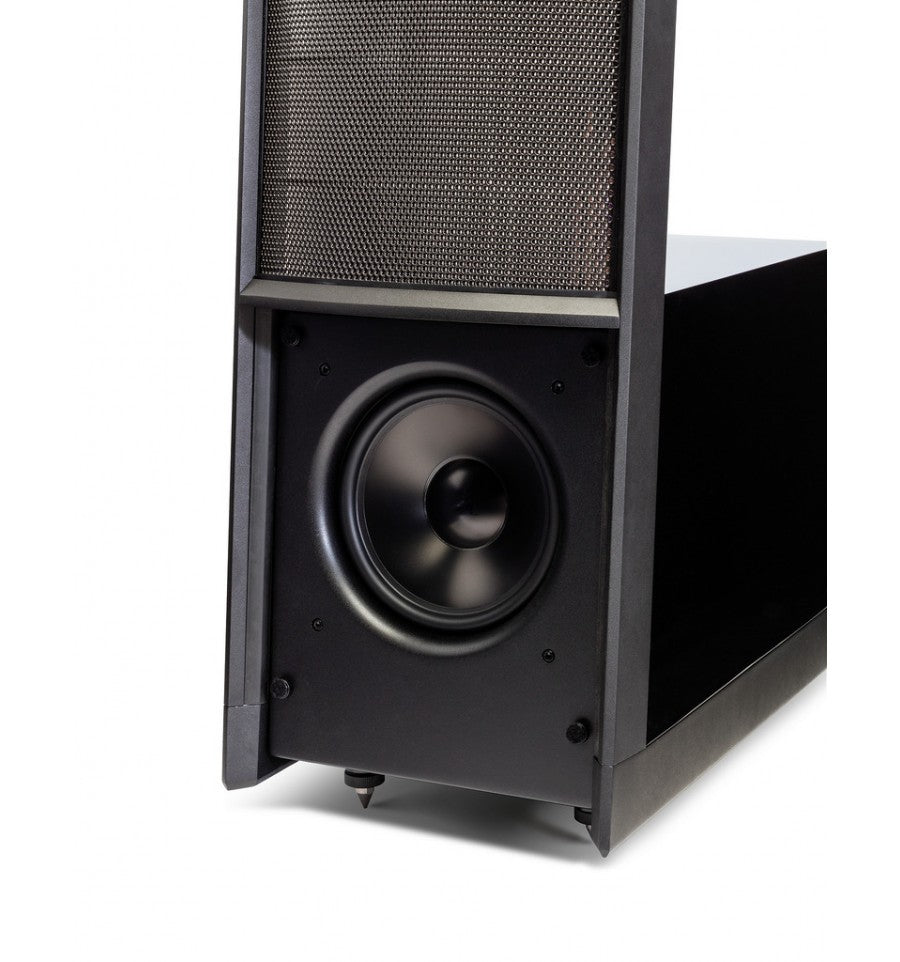

Low Frequency Transducer
|
Two 8” (20.3 cm) cast basket, high excursion, rigid aluminium cone and extended throw drive assembly, non-resonance asymmetrical chamber format.
|
|
Amplifier
|
Woofer: 2 x 275 watts/channel (4 ohms), 2 x 550 watts peak
|
|
Room Correction (Bass Section)
|
Anthem Room Correction (ARC™) ready (Sold Separately)
|
|
Components
|
Custom-wound audio transformer, air core coils, polypropylene capacitors. 24-bit DSP based preamplifier (used with woofer amplifier).
|
|
Audio Controls
|
Bass: ±10 dB under 75 Hz Mid-Bass: –2 dB, 0 db, +2 db ARC™ Room EQ: On, Off
|
|
Signal Inputs
|
WBT-0703Cu nextgen™ 5-way binding posts feature a filigree signal conductor made from gold plated, nickel free, non- ferromagnetic, pure copper for high conductivity and fully insulated. Free from eddy current effects.
|
|
Inputs
|
AC Power, RJ45 (for ARC), mini USB (for ARC)
|
|
Power Draw
|
Idle: < 1W/channel Max: 500W/channel
|
|
Weight
|
90 lbs. (40.9 kg)
|
|
Dimensions
|
60.75" x 11.9" x 27.4 " (154.3cm x 30.2cm x 69.6cm)
|
