Martin Logan

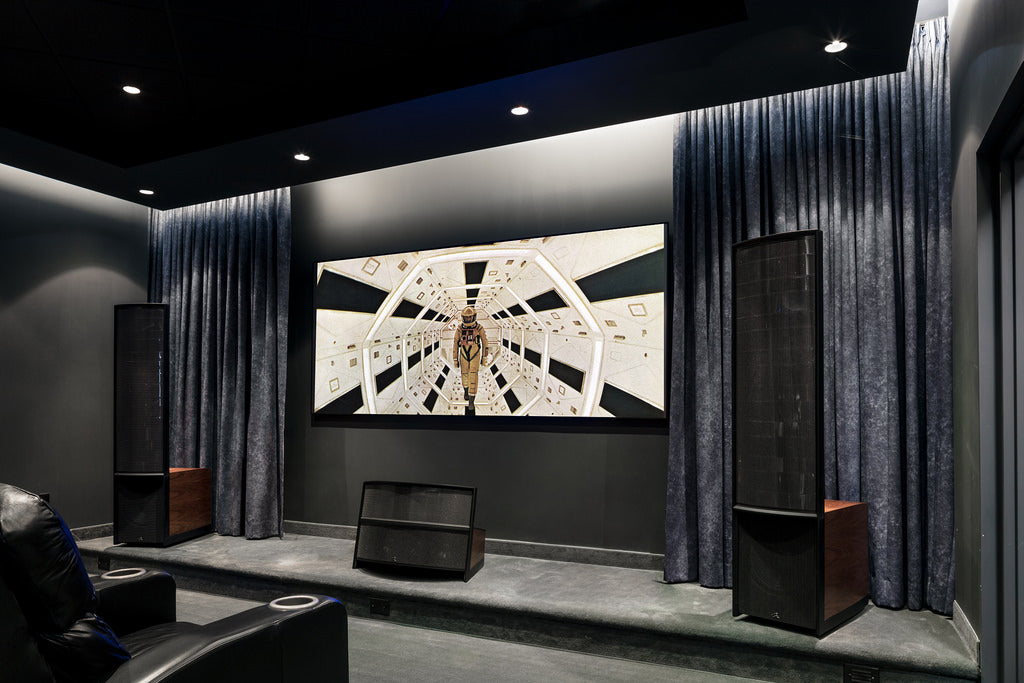

Illusion ESL C34A

Illusion ESL C34A

Regular price $0.00 AUD
Regular price Sale price $0.00 AUD
Sale Sold out
Specifications are subject to change without notice

Frequency Response

45–23,000 Hz ±3dB

Recommended Amplifier Power

20—600 watts per channel

Horizontal Dispersion

30°

Sensitivity

90 dB/2.83 volts/meter

Impedance

6 Ohms Compatible with 4, 6, or 8 Ohm rated amplifiers.

Crossover Frequency

500, 2000 Hz

High Frequency Transducer

Two 1.25" x 2.4" (3.2cm x 6.1cm) Folded Motion XT Transducers with 4.5" x 2.75" (11.4cm x 7cm) diaphragm.

Mid Frequency Transducer

Patented CLS™ XStat™ electrostatic transducer. » Panel Dimensions: 8" x 34.5" (20.3 x 87.6cm) » Radiating Area: 276 in² (1,778 cm²)

Low Frequency Transducer

Four 6.5" (16.5cm) cast basket, high excursion, rigid aluminum cone with extended throw drive assembly, non-resonance asymmetrical chamber format.

Amplifier

1x 250 watts/channel (4 ohms), 500 watts peak

Room Correction (Bass Section)

Anthem Room Correction (ARC) Ready (Sold Separately)

Components

Custom-wound audio transformer, air core coils, polypro- pylene capacitors. 24-bit DSP based preamplifier (used with woofer amplifier).

Audio Controls

Bass: ±10dB under 75Hz Mid-Bass: –2dB, 0dB, +2dB ARC Room EQ: On, Off

Signal Inputs

WBT-0703Cu nextgen™ 5-way binding posts feature a filigree signal conductor made from gold plated, nickel free, non- ferromagnetic, pure copper for high conductivity and fully insulated. Free from eddy current effects.

Inputs

AC Power, RJ45 (for ARC), mini USB (for ARC)

Power Draw

Max: 300W per channel Standby: <1W per channel

Weight

90 lbs. (40.9 kg)

Dimensions

23.75" x 32.35" x 23.1 " (60.3cm x 82.2cm x 58.6cm)
