WIIM-AMP-PRO

WiiM Amp Pro: Multiroom Stereo Streaming Amplifier

Introducing the WiiM Amp Pro

The WiiM Amp Pro is our advanced second-generation streaming amplifier, designed to deliver exceptional audio quality and versatile functionality. With 60 watts per channel at 8 ohms and 120 watts per channel at 4 ohms, it ensures powerful and clear sound. The amplifier supports all major streaming services and protocols, including Dolby Digital Audio. It utilizes the latest Wi-Fi 6E and Bluetooth 5.3 technologies, featuring two antennas for stable and reliable wireless streaming.

Elevating Your Audio Experience

This amplifier sets a new benchmark in audio fidelity through its premium components, including the ESS ES9038Q2M Audio DAC and TI TPA3255 Amplifier. With an impressive signal-to-noise ratio of 118 dB (A-weighted) and total harmonic distortion plus noise of -101 dB at 5 watts, it delivers pristine sound across a wide frequency range of 44.1kHz to 192kHz. The WiiM Amp Pro combines a streaming unit and speaker amplifier into a single device, making it compatible with various passive speakers such as bookshelf, ceiling, and floor-standing types.

Seamless Connectivity and Versatility

The WiiM Amp Pro connects effortlessly to a range of audio devices, including turntables, MP3 players, TVs, and projectors, enhancing your audio experience. Whether you're upgrading your passive speakers, enhancing your TV setup, or integrating a vintage record player, this amplifier opens up a world of musical possibilities. You can stream music directly from your favorite apps using the WiiM Home App or control playback through voice commands with Alexa, Google Assistant, or Siri.

Technical Specifications

• Power Output: 60 watts per channel at 8 ohms, or 120 watts per channel at 4 ohms
• Speaker Configuration: Capable of powering up to four speakers with post-filter feedback (PFFB) loop
• DAC and Amplifier: 32-bit/384kHz ES9038 Q2M SABRE DAC and TI TPA3255 Class-D amplifier
• Multiroom Streaming: Compatible with AirPlay 2, Amazon Echo, Google Home, and other WiiM devices for multiroom audio setups
• Supported Technologies: AirPlay 2, Chromecast, Spotify, TIDAL Connect, Alexa Cast, DLNA
• Case: Sleek aluminium case with an award-winning design

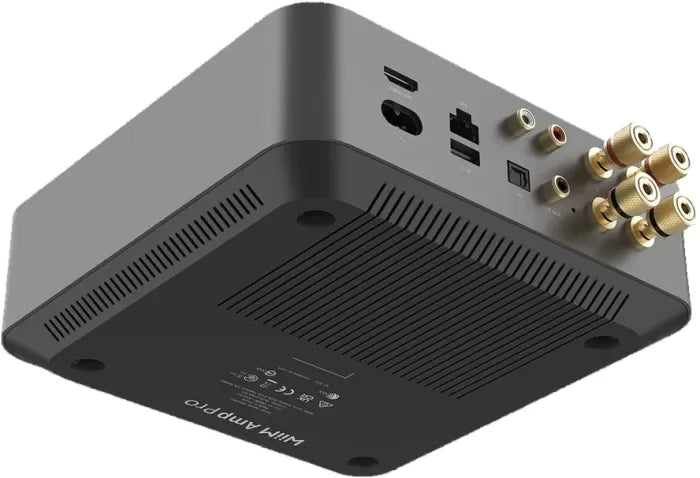

• Connections: HDMI ARC for TV with Dolby Digital support, Stereo RCA, Optical, HDMI ARC, USB-A
• Audio Outputs: Speaker terminals, Subwoofer output
• Connectivity: Latest Wi-Fi 6E and Bluetooth 5.3 with dual antennas
• Playback: Gapless playback of high-resolution music up to 24-bit/192 kHz
• Room Correction: Built-in room correction
• Sound Quality: Superior audio with -105 dB THD+N and 120 dB SNR
• USB Port: For storage and audio output
• Voice Assistants: Compatible with Alexa, Google Assistant, and Siri
• Bluetooth: 2-way Bluetooth 5.3 for streaming from smartphones or connecting wireless headphones

The WiiM Amp Pro is a versatile and high-performance amplifier that brings together advanced technology and superior sound quality, perfect for any audio enthusiast looking to enhance their listening experience.
