Frequency Response
|
50–23,000 Hz ±3dB
|
|
Recommended Amplifier Power
|
20—300 watts per channel
|
|
Horizontal Dispersion
|
30°
|
|
Sensitivity
|
90 dB/2.83 volts/meter
|
|
Impedance
|
4 Ohms Compatible with 4, 6, or 8 Ohm rated amplifiers.
|
|
Crossover Frequency
|
470, 3000 Hz
|
|
High Frequency Transducer
|
1" x 1.4" (2.6cm x 3.6cm) Folded Motion Transducer with 5.25" x 1.75" (13.3cm x 4.4cm) diaphragm.
|
|
Mid Frequency Transducer
|
Patented CLS™ XStat™ electrostatic transducer » Panel Dimensions: 7.5" x 18" (19 x 45.7cm) » Radiating Area: 135 in² (868 cm²)
|
|
Low Frequency Transducer
|
Two 6.5" (16.5cm) cast basket, high excursion, rigid aluminum cone with extended throw drive assembly, non-resonance asymmetrical chamber format.
|
|
Components
|
Custom-wound audio transformer, air core coils, low DCR steel laminate coils, polyester capacitors
|
|
Audio Controls
|
Position: On-Wall / Off-Wall
|
|

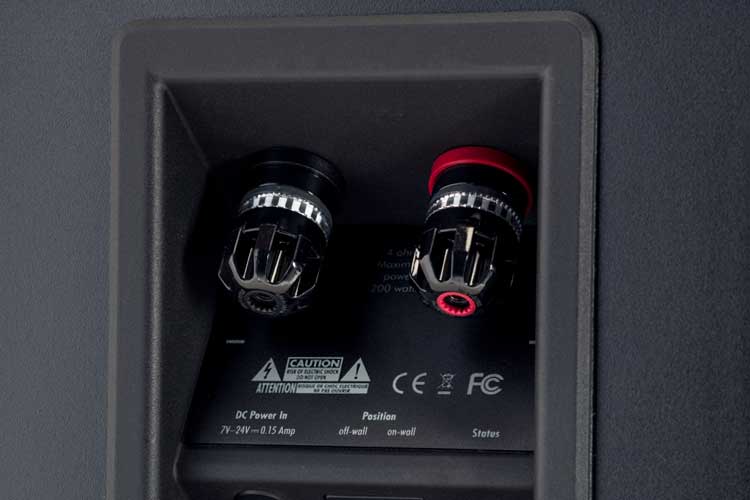

Signal Inputs
|
WBT-0703Cu nextgen™ 5-way binding posts feature a filigree signal conductor made from gold plated, nickel free, non- ferromagnetic, pure copper for high conductivity and fully insulated. Free from eddy current effects.
|
|
Weight
|
50 lbs. (22.7 kg)
|
|
Dimensions (Table Mount)
|
9.6" x 43.2" x 9.2 " (24.4cm x 109.7cm x 23.4cm)
|
|
Dimensions (Installed On Wall, Flat Mount)
|
9.4" x 43.2" x 9.6" (23.9 cm x 109.7cm x 24.5cm)
|
|
Dimensions (Installed On Wall, Angled)
|
11.3" x 43.2 " x 11.5 " (28.8 cm x 109.7cm x 29.1 cm)
|
