Frequency Response
|
66–23,000 Hz ±3dB
|
|
Recommended Amplifier Power
|
20—300 watts per channel
|
|
Horizontal Dispersion
|
30°
|
|
Vertical Dispersion
|
6.375" (16cm) line source
|
|
Sensitivity
|
89 dB/2.83 volts/meter
|
|
Impedance
|
4 Ohms Compatible with 4, 6, or 8 Ohm rated amplifiers.
|
|
Crossover Frequency
|
600, 3400 Hz
|
|
High Frequency Transducer
|
One 1" x 1.4" (2.6cm x 3.6cm) Folded Motion Transducer with 5.25" x 1.75" (13.3cm x 4.4cm) diaphragm.
|
|
Mid Frequency Transducer
|
XStat™ CLS™ electrostaic transducer. » Panel Dimensions: 6.375" x 23" (16.1 x 58.4cm) » Radiating Area: 146.6 in² (940 cm²)
|
|
Low Frequency Transducer
|
Two 5.25" (13.3 cm) high excursion, high-rigidity aluminum cone with extended throw driver assembly, non-resonance asymmetrical chamber format.
|
|
Components
|
Custom-wound audio transformer, air core coils, low dcr steel laminate coils, polyester capacitors
|
|

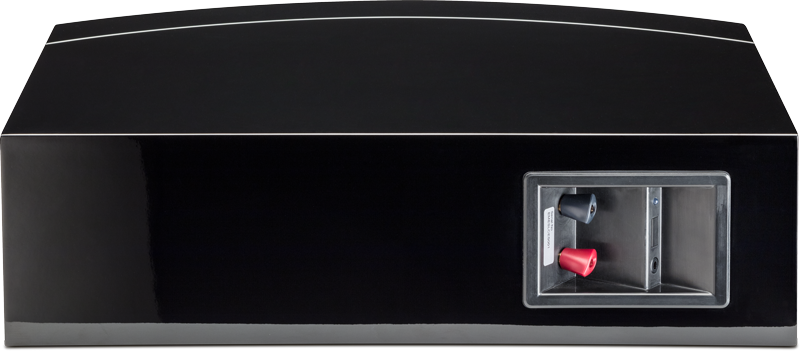

Inputs
|
Custom 5-way tool-less binding posts
|
|
Weight
|
32 lbs. (14.5 kg)
|
|
Dimensions
|
7.6" x 22.8" x 16.1 " (19.3cm x 57.9cm x 40.9cm)
|
