Frequency Response
|
68–22,000 Hz ±3dB
|
|
Recommended Amplifier Power
|
20—300 watts per channel
|
|
Horizontal Dispersion
|
30°
|
|
Vertical Dispersion
|
28" (71cm) line source
|
|
Sensitivity
|
90 dB/2.83 volts/meter
|
|
Impedance
|
6 Ohms, 1.3 @ 20kHz Compatible with 4, 6, or 8 Ohm rated amplifiers.
|
|
Crossover Frequency
|
530Hz
|
|
High Frequency Transducer
|
XStat™ CLS™ electrostaic transducer » Panel Dimensions: 28" x 8.6" (71 x 22cm) » Radiating Area: 241 in² (1,562 cm² )
|
|
Low Frequency Transducer
|
6.5" (16.5cm) high excursion, fiber cone with extended throw drive assembly; bass reflex
|
|
Components
|
Custom-wound E-I core transformer, air core coils, metal film capacitors
|
|

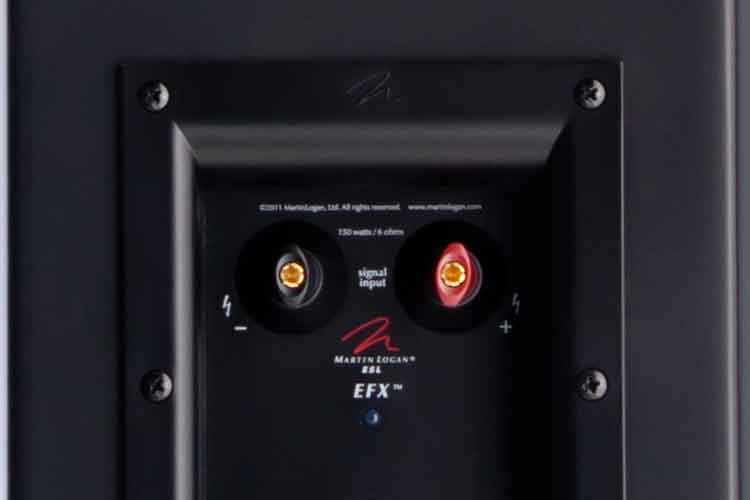

Inputs
|
Custom 5-way binding posts
|
|
Power Draw
|
Max: 2W each Standby: <1W each
|
|
Weight
|
24.5 lbs. (11.1 kg)
|
|
Dimensions
|
48.8" x 9.4" x 6.5 " (123.9cm x 23.8cm x 16.5cm)
|
