Dark Power 845-2

Hi-Fi: Power Amplifier

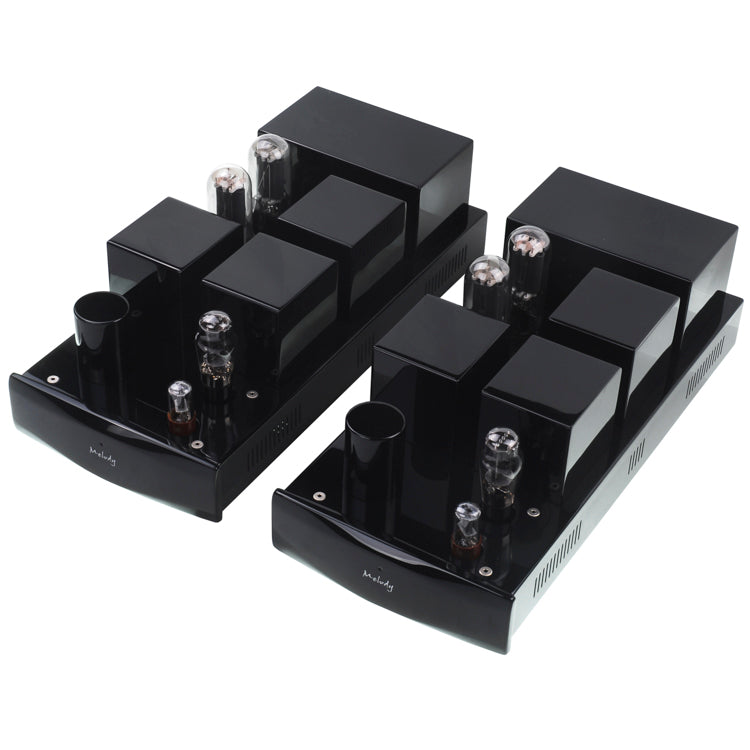

A pair of powerful and refined amplifiers, containing two 845 class A. Sophisticated sound to be paired with expensive loudspeakers with a great extension of frequencies creating a magical soundstage. It is right in this project that the 845 Hi-End tube shows its power and dynamics along with the silky sound of the 2A3.

A pair of monophonic amplifiers with a power in class A-B1.

Power-Tube 845 x 2 in Push-Pull, Pre-Tube 2A3 X 1- Tube Adopted 6SN7 X1 (single monophonic).

Specifications

• Monophonic: Power: 70W Class A
• Frequency Response: 20 Hz – 30 KHz
• Input Impedance: 200k Ohm
• Output Impedance: 4 – 8 Ohm
• Input sensitivity: 1.2V
• Signal / Noise Ratio > 88dB
• THD: <1%
• Dimensions (L x A x P): 300 x 215 x 700
• Weight: 45kg
