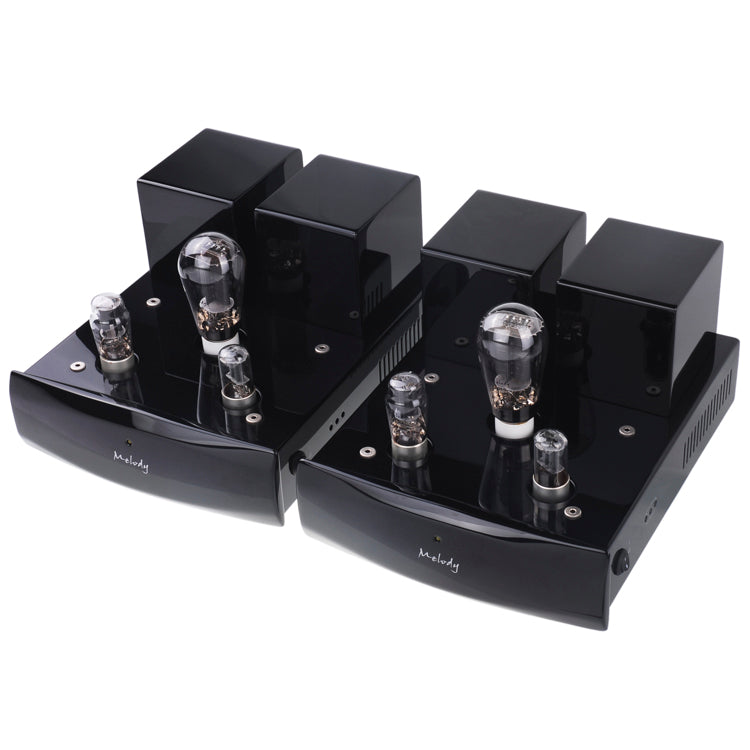

Dark Power 300B-1

Pair of refined and precious monophonic, a 300B selected pair in pure class A. Refined sound ideal to be used with high efficiency speakers, where what one is looking for is only the quality in listening to music. The 300B tubes possess a high sensitivity in the sound reproduction and in the reproduction of parts of the sound stage, never dry but with a sound excitement.

A pair of monophonic amplifiers with a power in class A

Power-Tube 300B x 1 in Single-Ended, Tube Adopted 5AR4 x 1, Pre-Tube 6SN7 x 1. (single monophonic)

COMPONENTS:

Capacitors Supreme Silver-Oil in silver
Nichicon Gold Tune Capacitors
Solen Gold Label Capacitors
Resistors selected at 1% of tolerance for the entire circuit
Melody Power transformers with oversized OCC filament
Ceramic sockets with terminals in gold OCC
Connectors Speaker of high-end binding posts
PIN-RCA Connectors by CMC 816
Black finish lacquer

TECHNICAL CHARACTERISTICS:

Monophonic: Power: 9,5W Class A
Frequency Response: 20Hz – 30 KHz
Input Impedance: 250k Ohm
Output Impedance: 4 – 8 Ohm
Input sensitivity: 800mV
Signal / Noise Ratio > 88dB
THD: <0,02%
Dimensions (LxAxP): 300 x 215 x 380
Weight: 20,5 KG

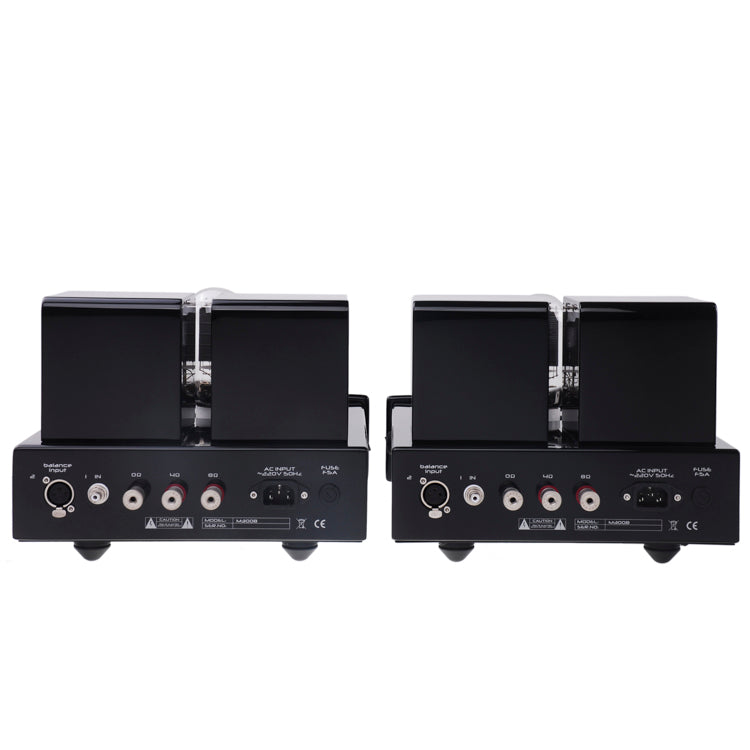

INPUTS:

n°1 RCA inputs
n°1 XLR balanced input
