Digital to Analogue Converter
Wolfson WM8742 24-bit DAC
FREQUENCY RESPONSE
20Hz to 20kHz (±0.1dB)
THD @ 1KHZ 0DBFS
<0.0025% 24-bit
THD @ 1KHZ -10DBFS
<0.0025% 24-bit
THD @ 20KHZ 0DBFS
<0.0025%
SIGNAL TO NOISE RATIO
-113dBr
TOTAL CORRELATED JITTER
<130pS
CROSSTALK @ 1KHZ
< -130dB
CROSSTALK @ 20KHZ
< -112dB
MAX. OUTPUT LEVEL (UNBALANCED)
2.3V rms
DIGITAL INPUT WORD WIDTHS SUPPORTED
16-24bit
DIGITAL INPUT SAMPLING FREQUENCIES SUPPORTED
32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 192kHz
MAX. POWER CONSUMPTION
5W
DIMENSIONS (WXHXD)
106 x 46 x 130mm (4.1 x 1.8 x 5.1")
WHATS IN THE BOX

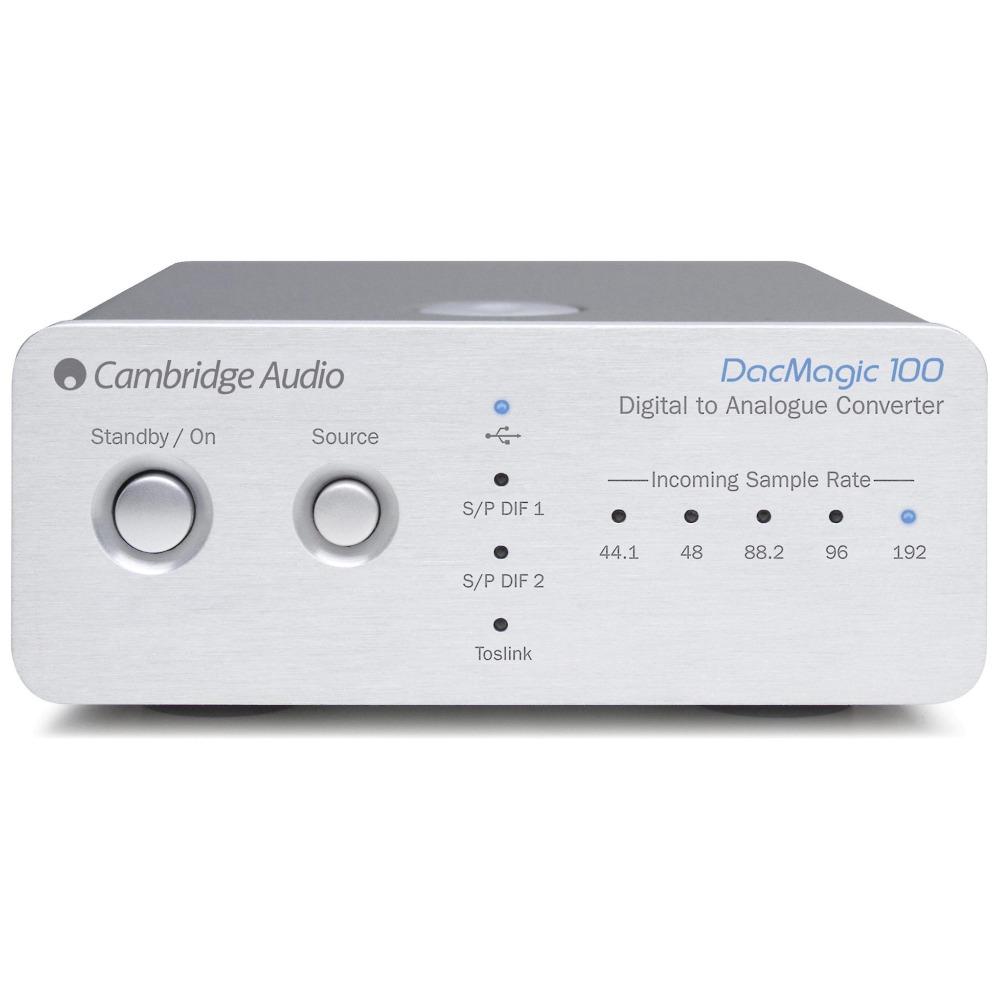

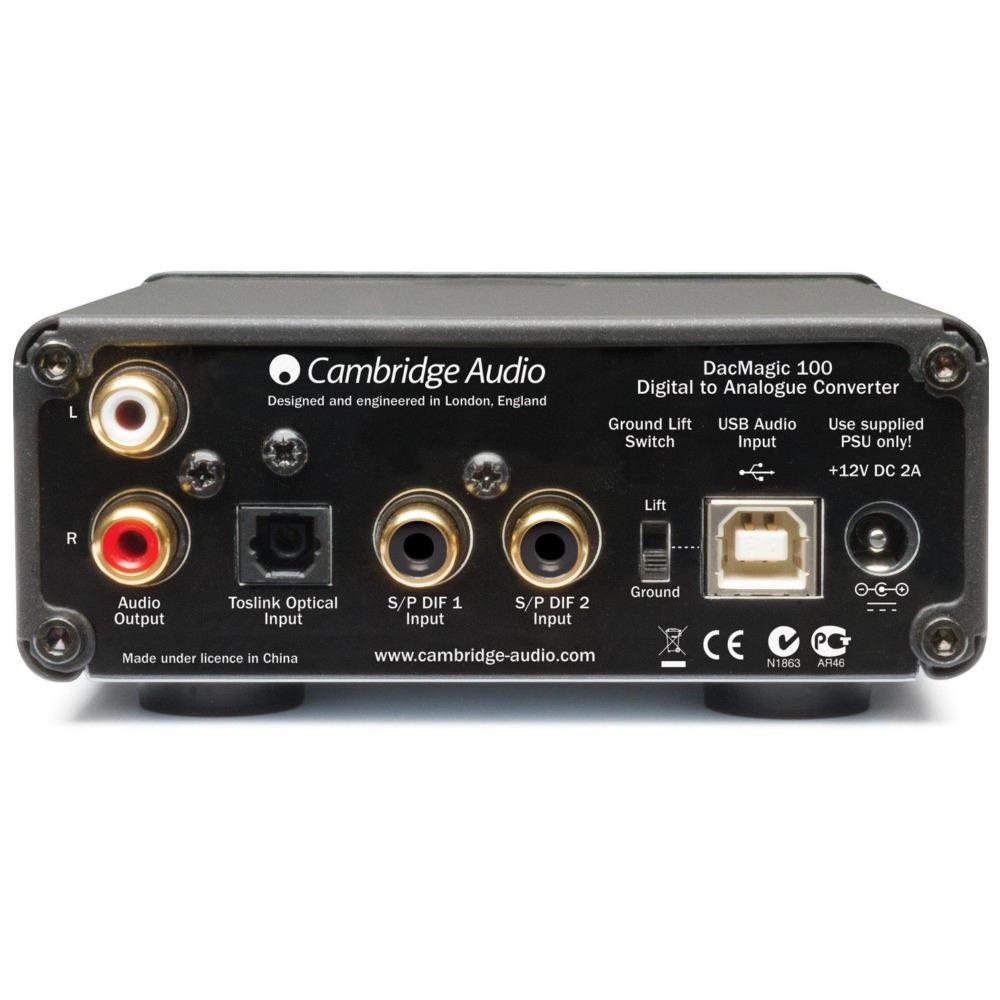

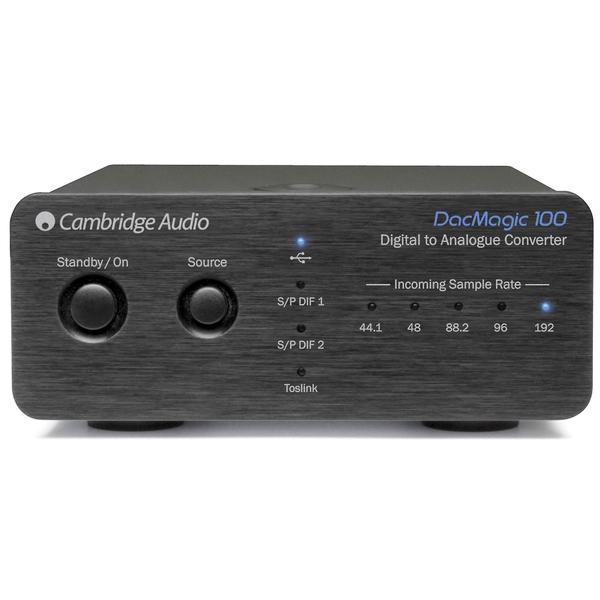

DacMagic 100 Digital to Analogue Converter, Quick Start Guide, Safety Guide, PSU (12V DC / 2A), Adapter, USB cable
