Frequency Response
|
34–23,000 Hz ±3dB
|
|
Recommended Amplifier Power
|
20—400 watts per channel
|
|
Horizontal Dispersion
|
30°
|
|
Vertical Dispersion
|
44" (112cm) line source
|
|
Sensitivity
|
90 dB/2.83 volts/meter
|
|
Impedance
|
4 Ohms, 0.8 at 20kHz Compatible with 4, 6, or 8 Ohm rated amplifiers.
|
|
Crossover Frequency
|
380Hz
|
|
High Frequency Transducer
|
XStat™ CLS™ electrostatic transducer » Panel Dimensions: 44" x 9.2" (112 x 23cm) » Radiating Area: 405 in² (2,576 cm² )
|
|

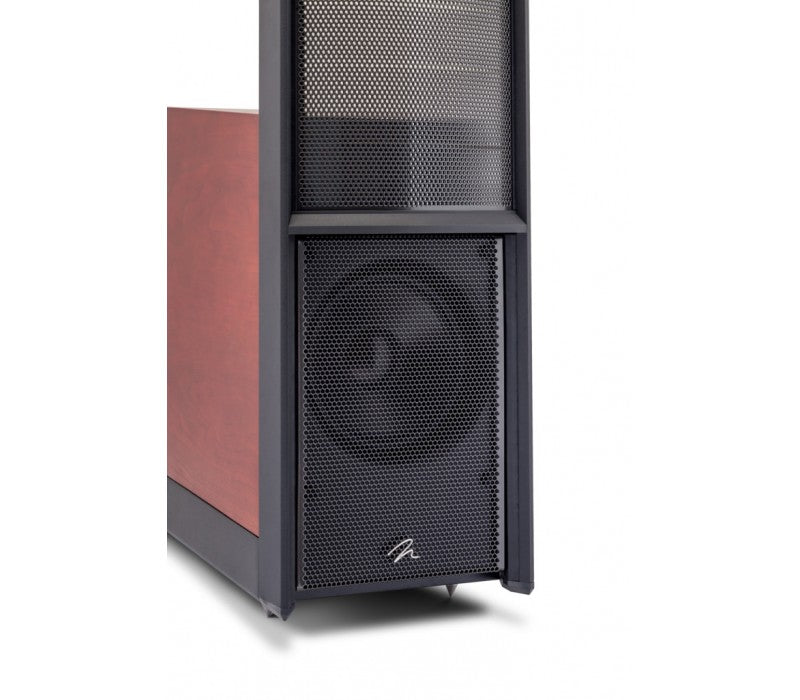

Low Frequency Transducer
|
Two 8” (20.3 cm) cast basket, high excursion, rigid aluminium cone woofers with extended throw drive assembly, non-resonance asymmetrical chamber format
|
|
Components
|
Custom-wound audio transformer, air core coils, low DCR steel laminate coils, polyester capacitors
|
|
Signal Inputs
|
Custom 5-way bi-wire tool-less binding posts
|
|
Power Draw
|
Max: 2W per channel Standby: <1W per channel
|
|
Weight
|
78 lbs. (35.4 kg)
|
|
Dimensions
|
59.8" x 10.4" x 25.4 " (152cm x 26.4cm x 64.6cm)
|
