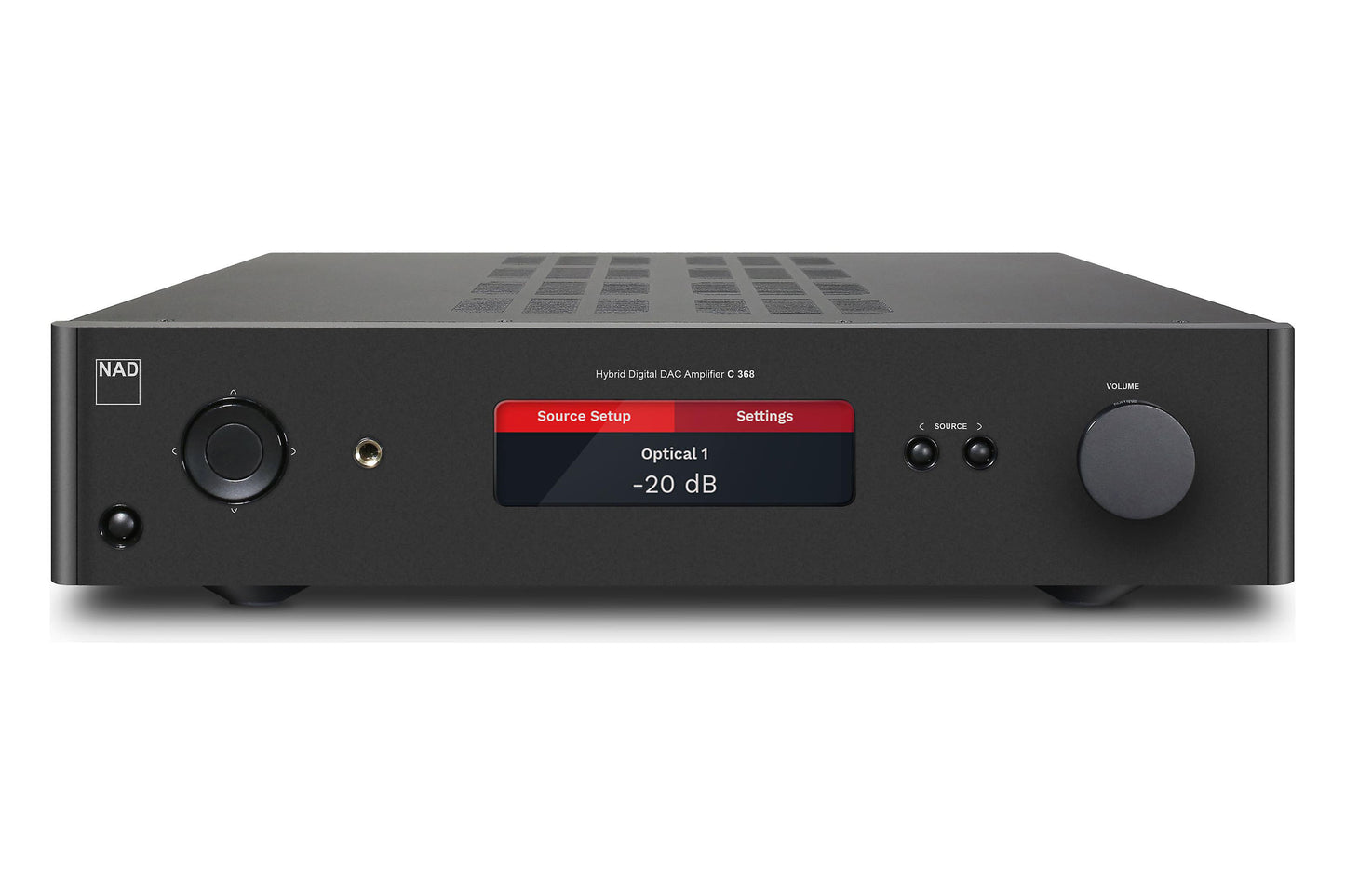

C 368

PREAMPLIFIER

Line Input, Pre Out

THD (20Hz - 20kHz): <0.005% at 2V out
Signal/Noise Ratio: >106dB (IHF; A-weighted, ref. 500mV out, unity gain)
Channel separation: >80dB (1kHz); >70dB (10kHz)
Input Impedance (R and C): 22 kilohm + 100pF
Maximum input signal: >4.5Vrms (ref. 0.1% THD)
Output impedance Source: Z + 240 ohm
Input sensitivity: 93mV (ref. 500mV out, Volume maximum)
Frequency response (±0.03dB): 20Hz - 20kHz
Maximum voltage output -IHF load: >4.5V (ref. 0.1% THD)

Tone Controls
Treble: ±7.0dB at 20kHz;
Bass: ±7.0dB at 60Hz;
Balance: -10dB

Phono Input, Pre Out

THD (20Hz - 20kHz): <0.01% at 2V out

Signal/Noise Ratio:
>84dB (200 ohm source; A-weighted, ref. 500mV out)
>76dB (MM cartridge source, IHF; A-weighted, ref. 500mV out)

Input sensitivity: 1.44mV (ref. 500mV out, Volume maximum)
Frequency response (±0.3dB): 20Hz - 20kHz
Maximum input signal at 1kHz: >80mVrms (ref. 0.1% THD)

Line Input, Headphone Out

THD (20Hz - 20kHz): <0.005% at 1V out
Signal/Noise Ratio: >110dB (32 ohm loads; A-weighted, ref. 2V out, unity gain)
Frequency response (±0.3dB): 20Hz - 20kHz
Channel separation: >60dB at 1kHz
Output impedance: 6 ohm

GENERAL SPECIFICATIONS

Line In, Speaker Out

Continuous Output Power into 4/8 ohms (Stereo): >80W (at rated THD, 20Hz - 20kHz, both channels driven)
Continuous Output Power into 4/8 ohms (Bridge mode): 300W (ref. 20Hz - 20kHz at THD 0.03%)

IHF Dynamic Power
2 ohm 250W
4 ohm 200W
8 ohm 120W

IHF Dynamic Power (Bridge mode)
4 ohm 560W
8 ohm 500W

THD (20Hz - 20kHz): <0.03% (250mW to 80W, 8 ohm and 4 ohm)
Signal/Noise Ratio: >98dB (A-weighted, 500mV input, ref. 1W out in 8 ohm)

Clipping power: >95W (at 1kHz 0.1% THD)
Clipping power (Bridge mode): >315W (at 1kHz 0.1% THD)

Peak output current: >20A (in 1 ohm, 1ms)
Damping factor: >300 (ref. 8 ohm, 20Hz to 6.5kHz)
Frequency response (±0.3dB): 20Hz - 20kHz
Channel separation: >75dB (1kHz); >70dB (10kHz)

Input sensitivity (for 80W in 8 ohm)
Line In: 470mV;
Digital In: 21% FS

Supports bit rate/sample rate: Up to 24bit/192kHz
Standby Power: <0.5W
Frequency Band: 2.402G - 2.480G
Maximum transmit power (dBm): 7dBm ± 2dBm

DIMENSIONS AND WEIGHT

Dimensions (W x H x D): 435 x 100 x 390mm
Net Weight: 7.8kg
Shipping Weight: 10.1kg
