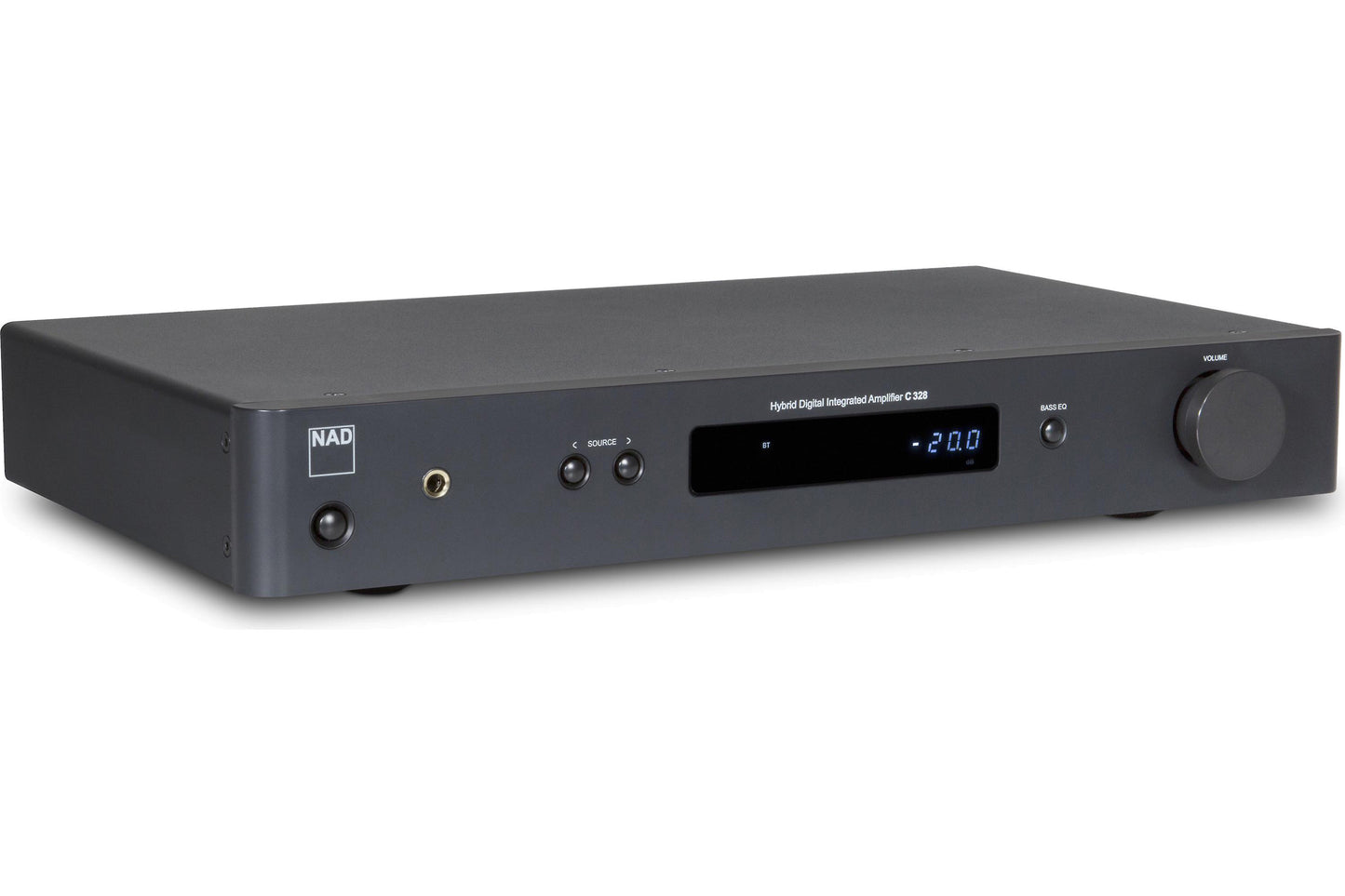

C 328

ANALOG IN/HEADPHONE OUT

THD (20 Hz – 20 kHz):  <0.005 % at 1 V out
Signal-to-Noise Ratio:  >100 dB (A-weighted, 32 ohms, ref. 2V out, unity gain)
Frequency response (±0.3 dB): 20 Hz - 20 kHz
Output Impedance: 11 Ohms

ANALOG IN/SUBWOOFER OUT

THD (20 Hz – 20 kHz): <0.005 % at 1 V out
Signal-to-Noise Ratio: >100 dB (A-weighted, 32 ohms, ref. 2V out, unity gain)
Frequency response (±0.2 dB): 20 Hz - 20 kHz
Gain: 17 dB
Output Impedance: 200 Ohms

ANALOG IN/SPEAKER OUT

Continuous output power into 8/4 Ohms: 50W (ref. 20 Hz-20 kHz at rated THD, both channels driven)
THD (20 Hz – 20 kHz): <0.03 % (100 mW to 40 W, 8 ohms and 4 ohms)
Signal-to-Noise Ratio: >95 dB (A-weighted, 500 mV input, ref. 1 W out 8 ohms)
Gain: 37 dB
Clipping power: >50 W (at 1 kHz 0.1 % THD)

IHF Dynamic Power
2 Ohm: 210w
4 Ohm: 150w
8 Ohm: 80w

Peak output current: >18A (in 1 ohm, 1 ms)
Damping factor: >100 (20 Hz - 20 kHz)
Frequency response (±0.3 dB): 20 Hz - 20 kHz

Channel separation
>85 dB (1 kHz)
>70 dB (10 kHz)

Input sensitivity (for 40 W in 8 ohms): 250 mV
Standby power: <0.5 W

PHONO IN/SPEAKER OUT

THD (20 Hz – 20 kHz): <0.03 % (200 mW to 40 W, 8 ohms and 4 ohms)
Signal-to-Noise Ratio: >75 dB with IHF MM cartridge (A-weighted, ref. 5mV input 1 kHz and 1W output in 8 ohms)
Frequency response (±0.3 dB): 20 Hz - 20 kHz

Channel separation:
>80 dB (1 kHz, 8 ohms, 50 mV input, 13W out)
>60 dB (10 kHz, 8 ohms, 50 mV input, 13W out)

Input sensitivity (for 40 W in 8 ohms): 3.6 mV

DIGITAL IN/SPEAKER OUT

THD (20 Hz – 20 kHz): <0.03 % (100 mW to 40 W, 8 ohms and 4 ohms)
Signal-to-Noise Ratio: >95 dB (A-weighted, -12 dBFS input, ref. 1W out in 8 ohms)
Frequency response (±0.3 dB): 20 Hz - 20 kHz
Gain: 47 dB (Vrms/FS)

Channel separation:
>80 dB (1 kHz)
>70 dB (10 kHz)

DIMENSION AND WEIGHT

Gross dimensions (W x H x D): 435 x 70 x 285 mm
Net weight: 4.9 kg
Shipping weight: 5.9 kg
