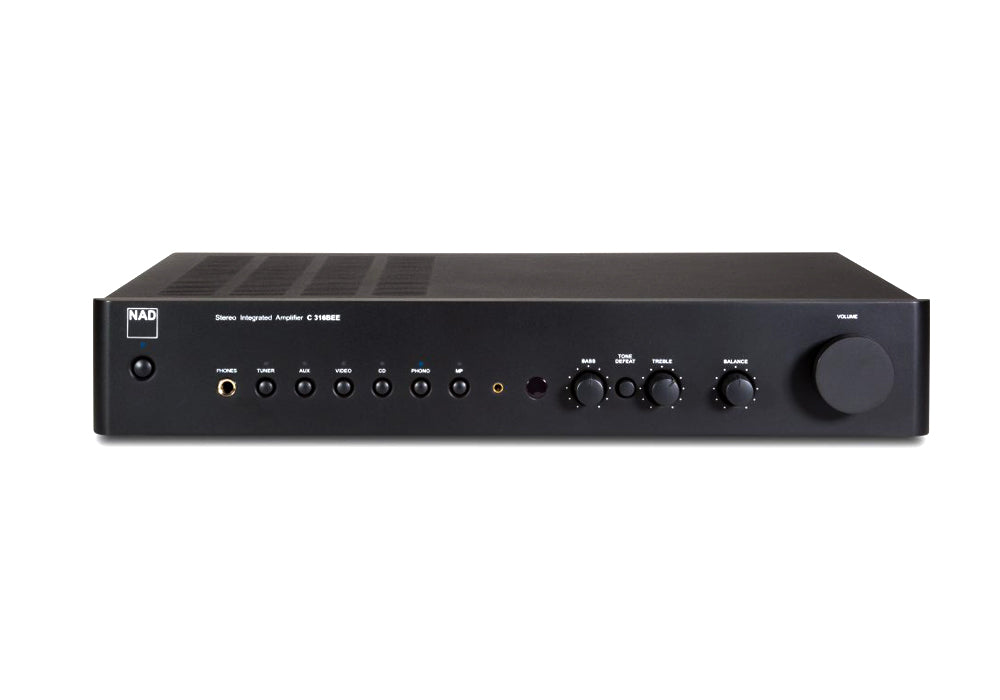

C 316BEE V2

LINE IN/HEADPHONE OUT

Total Harmonic Distortion (THD): <0.03 % in 300 ohms at 2 V out (20 Hz – 20 kHz)
Signal-to-Noise Ratio: >100 dB (A-weighted, 32 ohms, ref. 2V out, unity gain)
Frequency Response: 20 Hz - 20 kHz (±0.3 dB)
Output Impedance: 68 ohms

LINE IN/SPEAKER OUT

Continuous output power into 8/4 Ohms: 40W (20 Hz - 20 kHz at rated THD, both channels driven)
Total Harmonic Distortion (THD): <0.03 % (250 mW to 40 W, 8 ohms and 4 ohms, 20 Hz – 20 kHz)

Signal-to-Noise Ratio:
>95 dB (A-weighted, 500 mV input, ref. 1 W out in 8 ohms)
>97 dB (A-weighted, 500 mV input, unity gain in 32 ohms)

Clipping power (at 1 kHz 0.1 % THD):
>45W in 8 ohms
>60W in 4 ohms

IHF dynamic power:
8 ohms: 90 W
4 ohms: 120 W
2 ohms: 170 W

Damping factor: >200 (ref. 8 ohms, 1 kHz)

Frequency response: 20 Hz - 20 kHz (±0.3 dB, Tone Defeat ON)
Treble: ± 5dB at 10 kHz
Bass: ± 8 dB at 100 Hz

Channel separation: >70 dB (1 kHz)
Maximum input level: 4.3V (1 kHz THD 0.1%)
Input sensitivity (40W in 8 ohms): 200 mV
Standby power: <0.5 W

PHONO IN/SPEAKER OUT

Total Harmonic Distortion (THD): <0.03 % (20 Hz – 20 kHz, 1 W to 40 W, 8 ohms and 4 ohms)
Signal-to-Noise Ratio: >75 dB with IHF MM cartridge (A-weighted, ref. 5mV input 1 kHz and 1W output in 8 ohms)
Frequency Response: ±0.3 dB (20 Hz - 20 kHz, Tone Defeat ON)
Maximum input level: 71 mV (1 kHz THD 0.1%)
Input sensitivity (40W in 8 ohms): 2.95 mV

DIMENSIONS AND WEIGHT

Gross dimensions (W x H x D): 435 x 90 x 285 mm
Net weight: 5.5 kg
Shipping weight: 6.4 kg
